Rear

REAR TURN SIGNAL LAMP
1. Disconnect the negative (-) battery terminal.

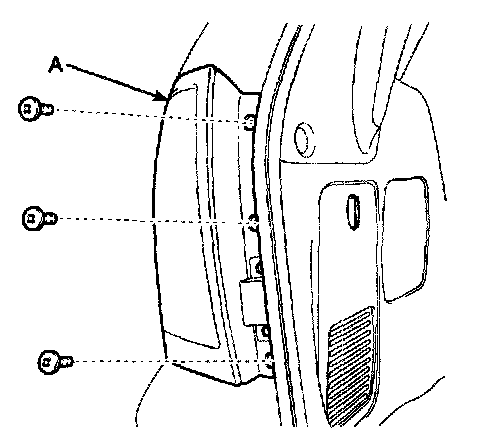

2. Remove the rear lamp assembly (A) after removing the mounting screw (3EA) and connector.

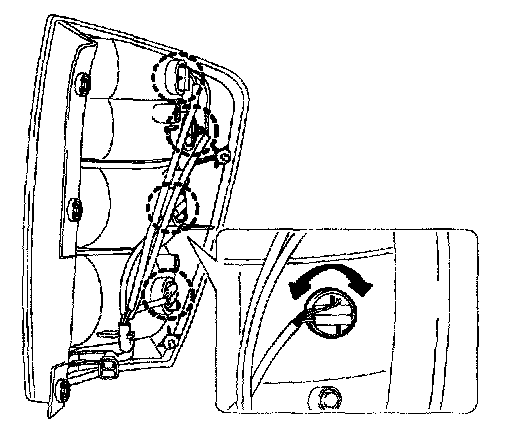

3. Remove the socket in a counterclockwise direction and replace the bulbs.
