Exhaust Manifold: Service and Repair

INTAKE AND EXHAUST SYSTEM

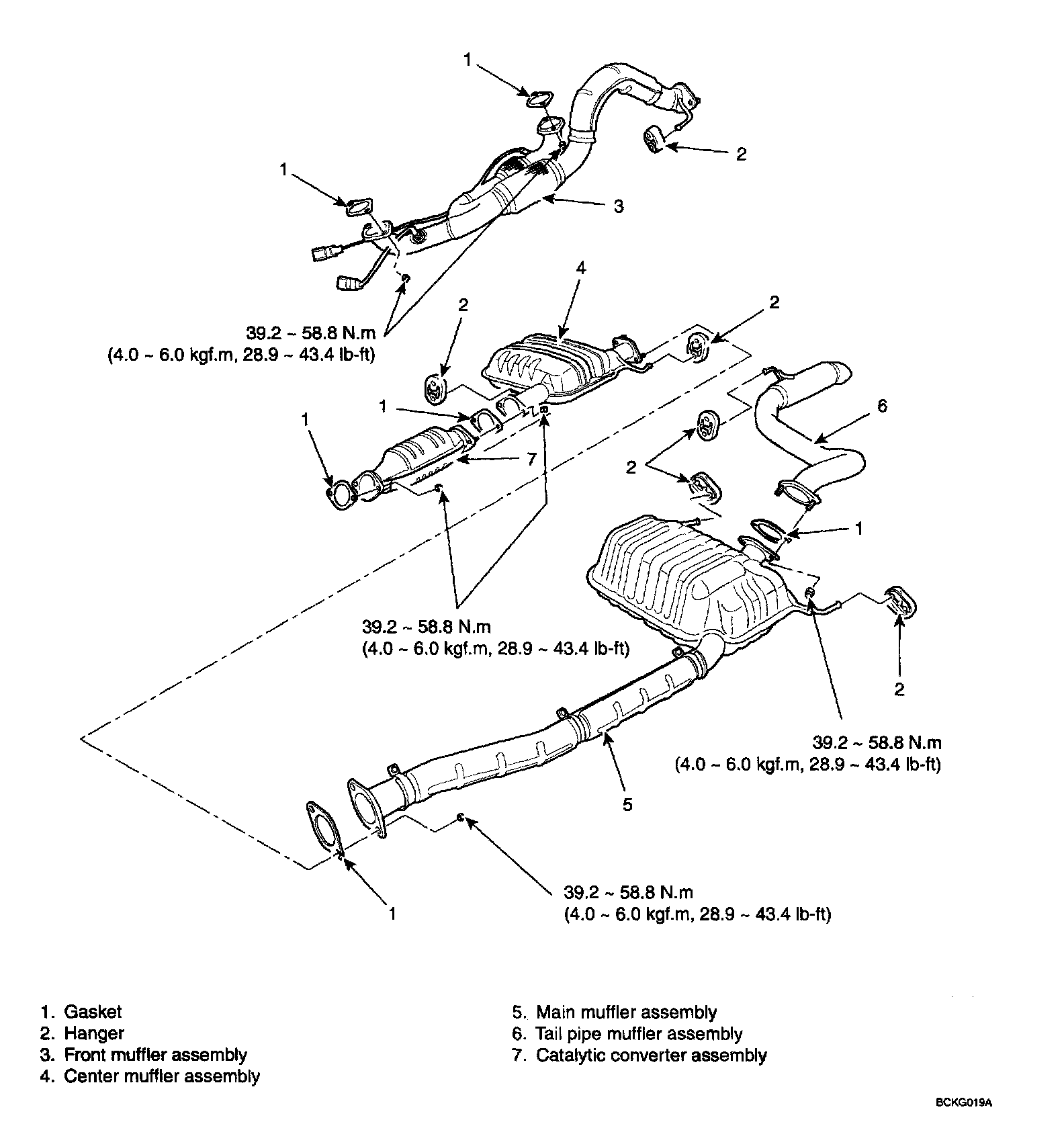

COMPONENT:

REMOVAL

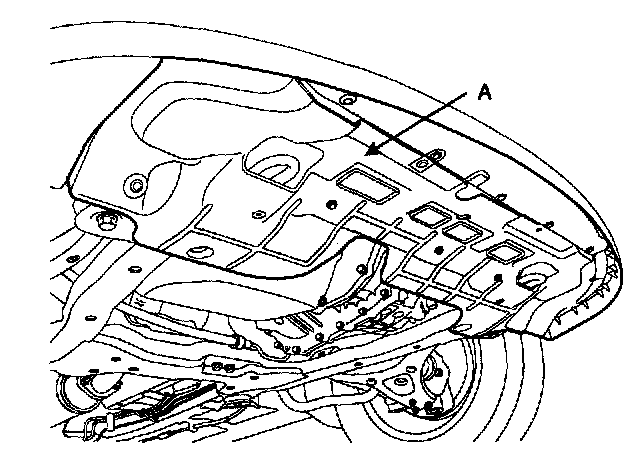

1. Remove under cover (A).





2. Disconnect LH, RH rear oxygen sensor connector from bracket.

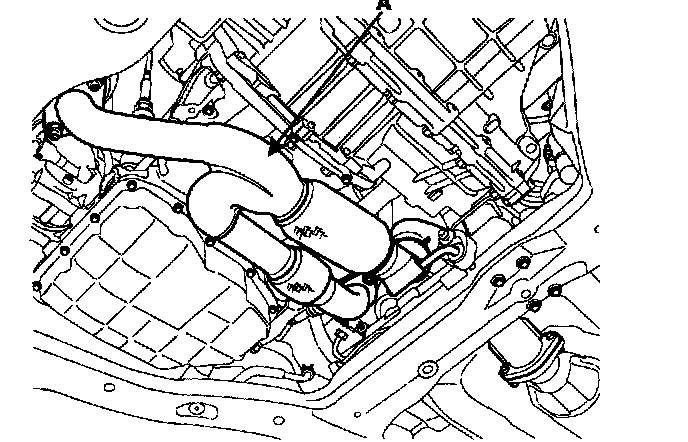

3. Remove front muffler (A).

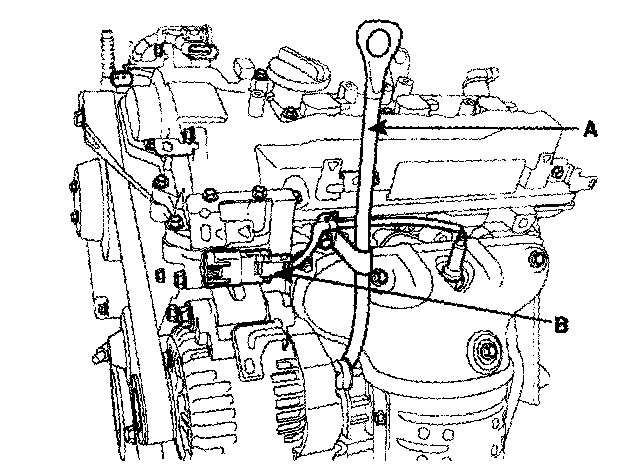

4. Remove oil level gauge (A).
5. Disconnect LH front oxygen sensor connector (B) from bracket.

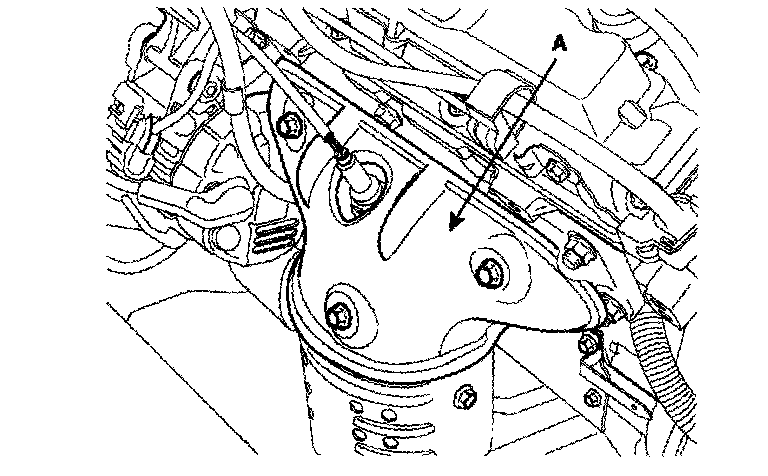

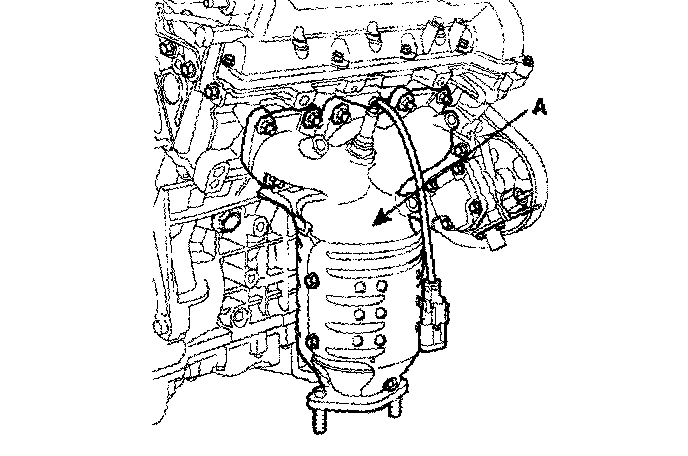

6. Remove LH heat protector (A).





7. Remove LH exhaust manifold.

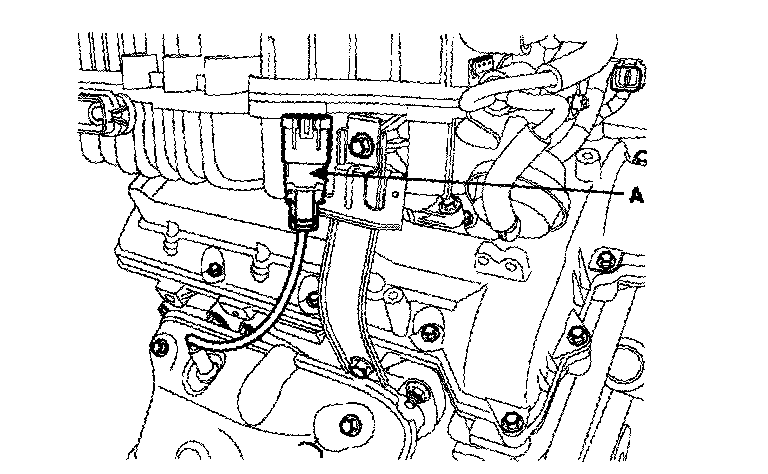

8. Disconnect RH front oxygen sensor connector from bracket.





9. Remove RH heat protector.
10. Remove RH exhaust manifold.





INSTALLATION
1. Install new gasket and exhaust manifold.
Tightening Torque: 39.2 - 44.1 Nm (4.0 - 4.5 kgf.m, 28.92 - 32.53 ft. lbs.)
2. Install heat protector.
Tightening Torque: 3.9 - 5.9 Nm (0.4 - 0.6 kgf.m, 2.89 - 4.34 ft. lbs.)
3. Install front muffler.
Tightening Torque: 39.2 - 58.8 Nm (4.0 - 6.0 kgf.m, 28.92 - 43.37 ft. lbs.)
4. Connect oxygen sensor connector.
5. Install under cover.
