Kia Truck
>>
2006
>>
Sedona V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Housing Assembly HVAC
>>
Rear Heater Unit
Rear Heater Unit

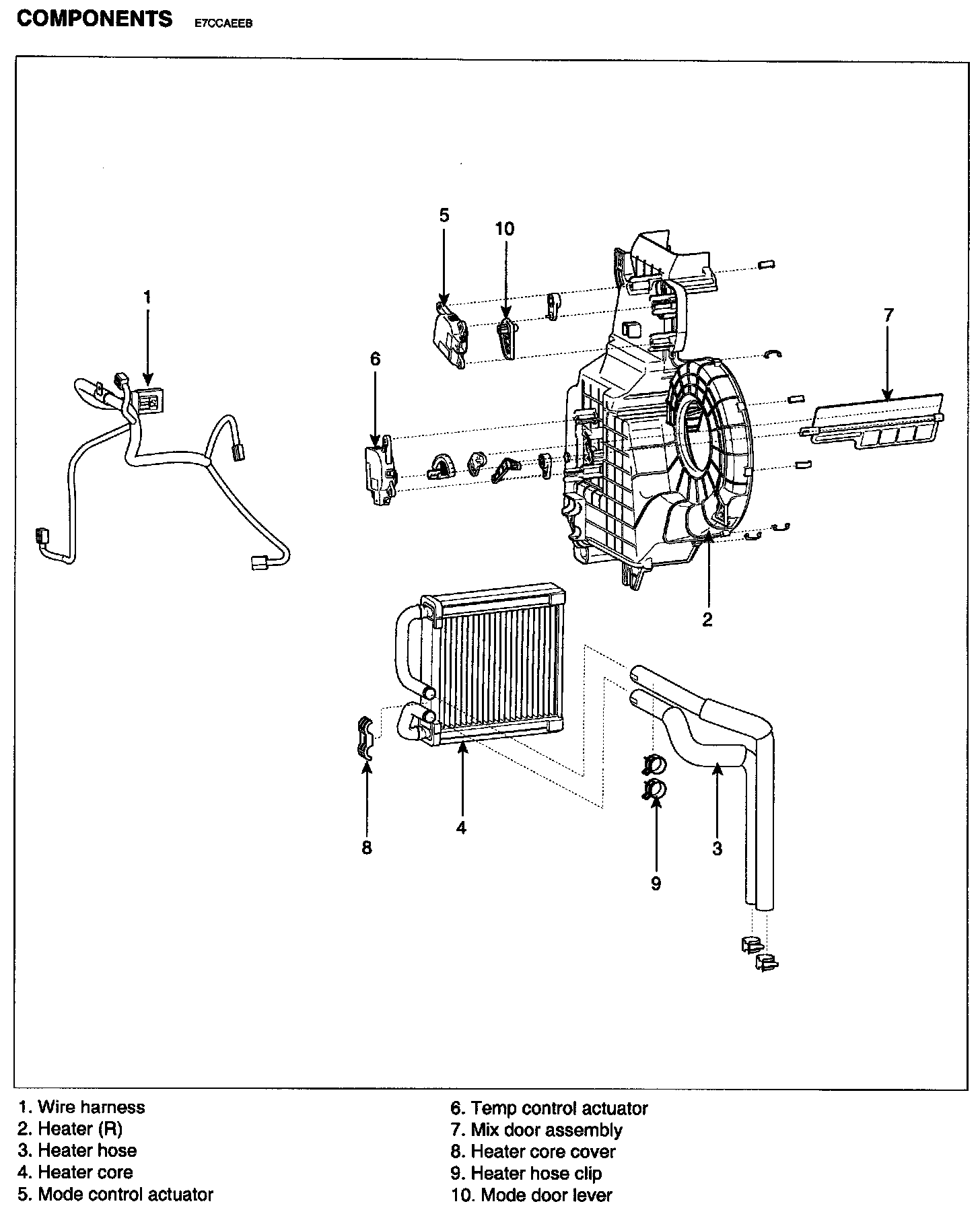

Rear Heater Unit Components:
Rear Heater Unit Components:
