Kia Truck
>>
2006
>>
Sedona V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Automatic A/C
Automatic A/C

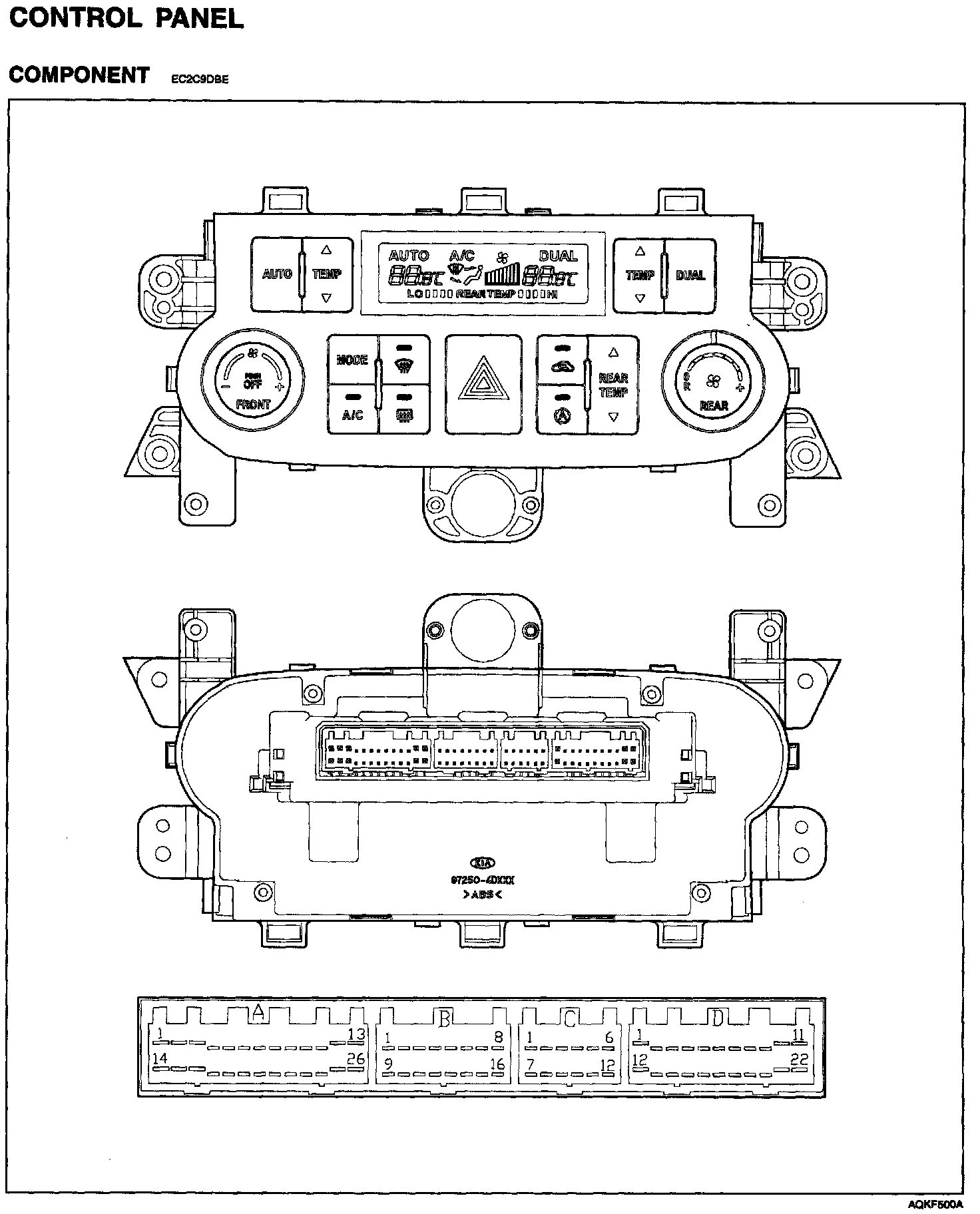

Control Panel Component:

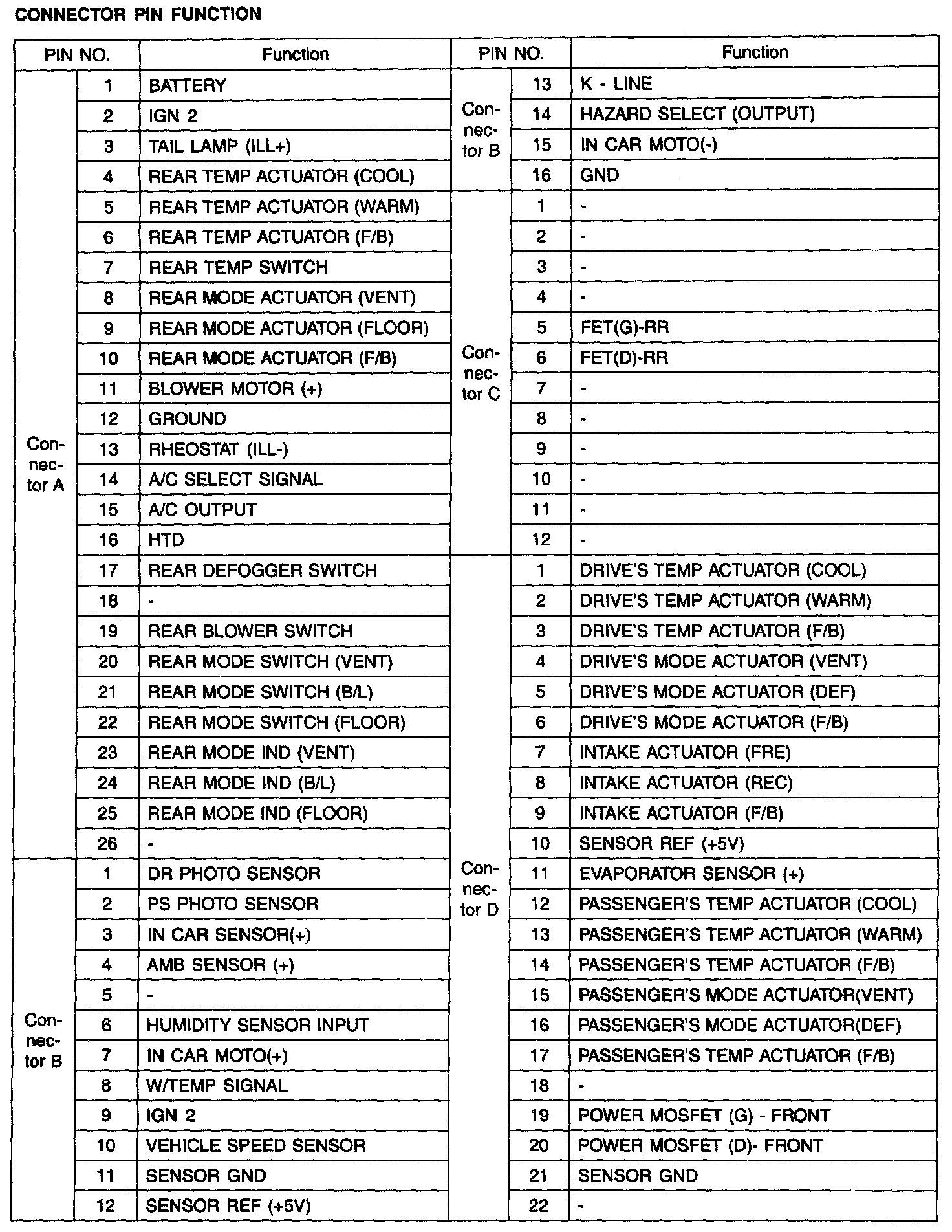

Connector Pin Function:
