Brake Hose/Line: Service and Repair

BRAKE LINE

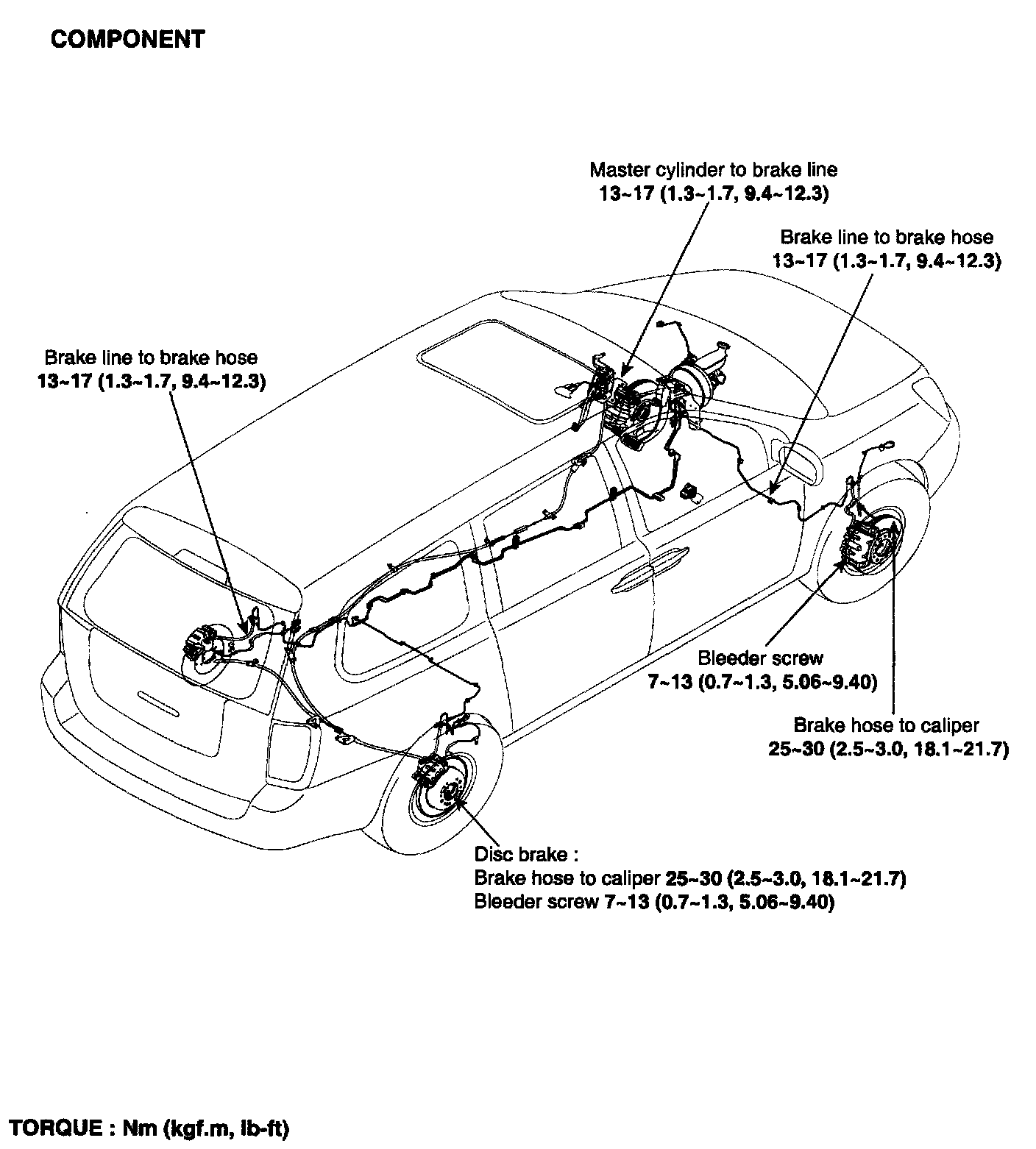

COMPONENT:

REMOVAL

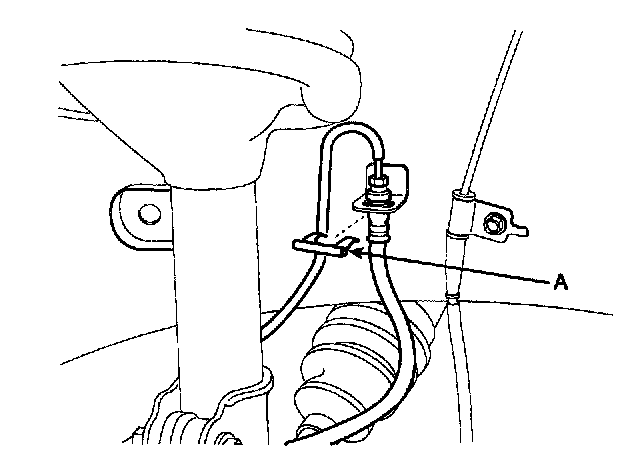

1. Remove the brake hose clip (A).

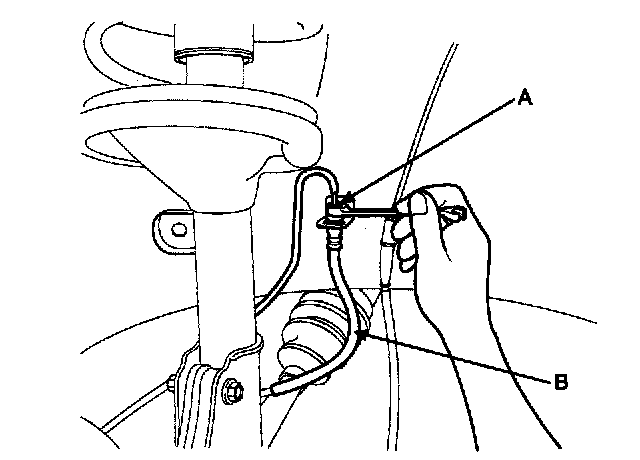

2. Loosen the brake tube (A) nut holding the brake hose (B) nut with a wrench.

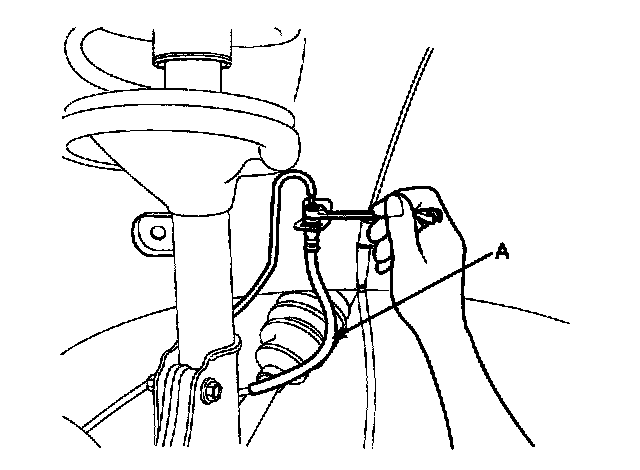

3. Remove the brake hose (B).

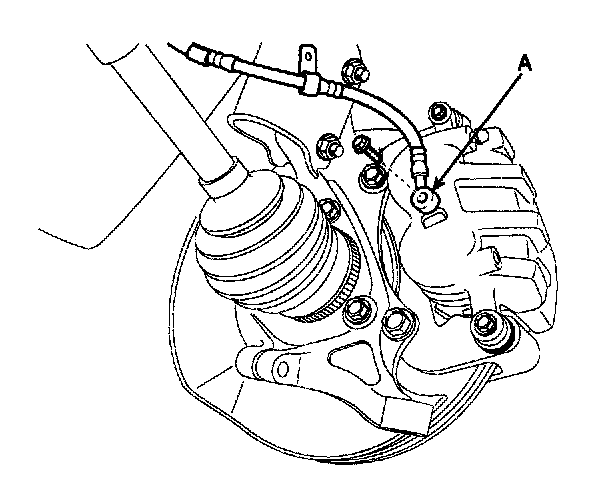

4. Remove the brake hose connecting bolt (A) from the caliper assembly.





INSTALLATION

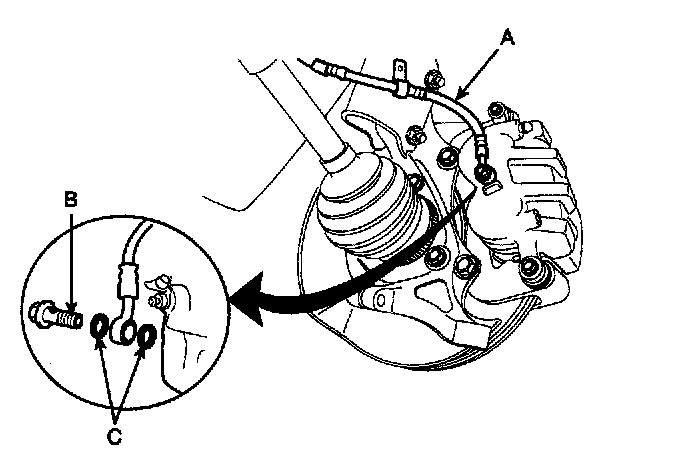

1. Install the brake hose (A) connecting bolt (B) and washer (C).





2. Tighten the brake tube (A) nut holding the brake hose (B) nut with a wrench.

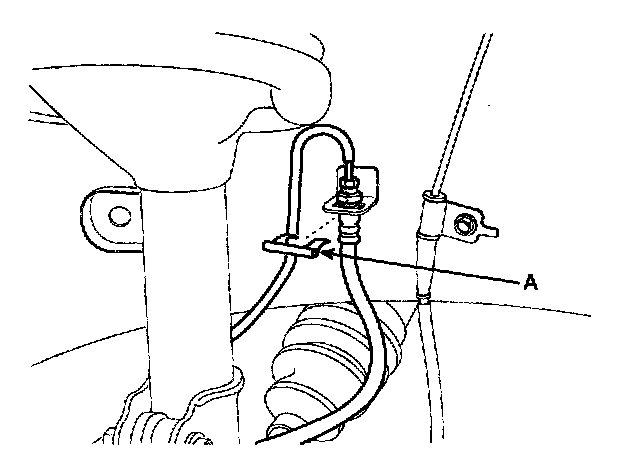

3. Install the brake hose clip (A).





4. After installation, breed the air in the brake system.

CAUTION: Be careful not to damage the brake hose by sharp edges or tools.
