Door

DOOR WEATHERSTRIP REPLACEMENT
1. Loosen the checker mounting bolts.

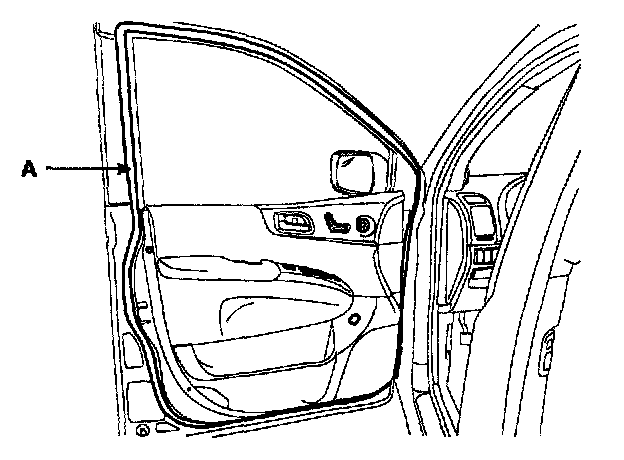

2. Release the clips then remove the door weather strip (A).
3. Installation is the reverse of removal.
