Sunroof Assembly Replacement

Sunroof Components:

SUNROOF ASSEMBLY REPLACEMENT
1. Remove the follows parts.
- Front and rear door scuff trim.
- Center and rear pillar trim.
- Headliner.
- Sunroof glass.

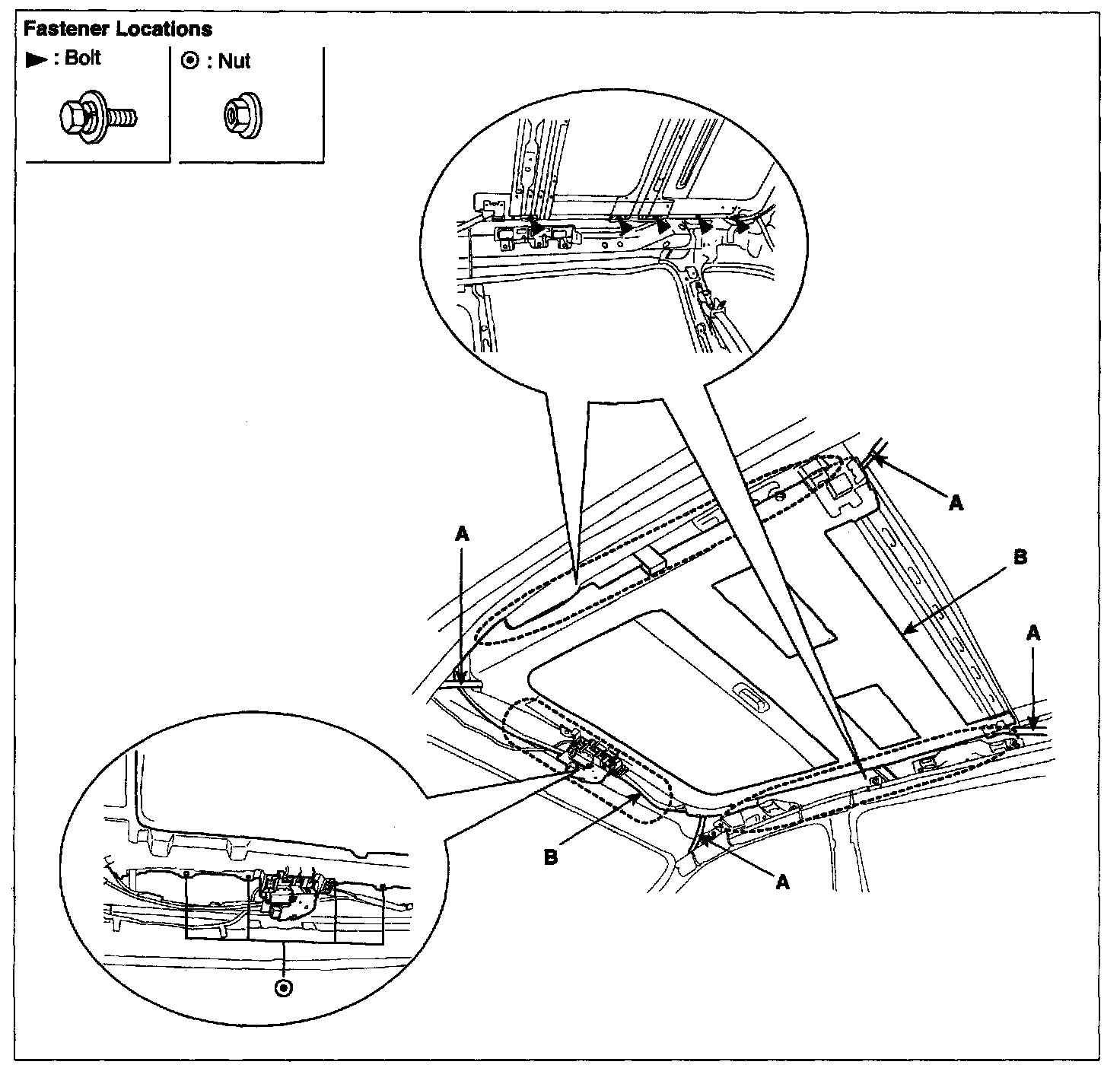

2. Disconnect the drain tubes (A).
3. After loosening the mounting bolts and nuts, remove the sunroof assembly (B).

NOTE: Take care not to scratch the interior trims and other parts.

4. Installation is the reverse of removal.
