Door Motor

DOOR MOTOR REPLACEMENT
1. Remove the rear combination ramp.

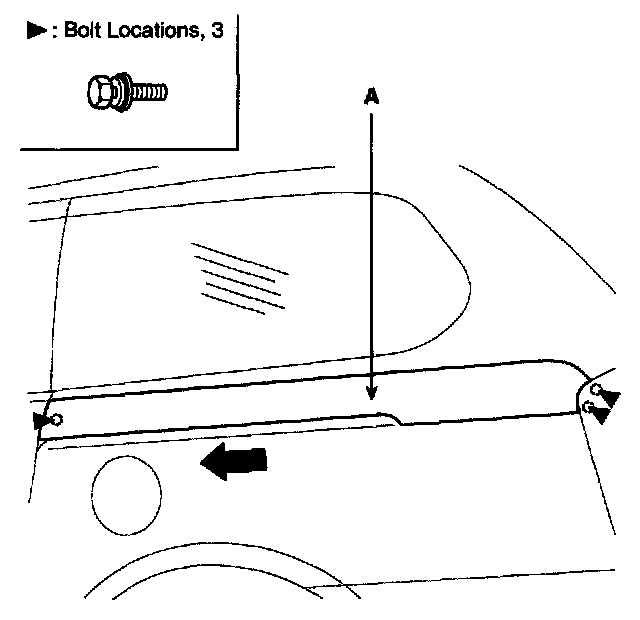

2. After loosening the rail cover mounting bolts, then remove the rail cover (A).

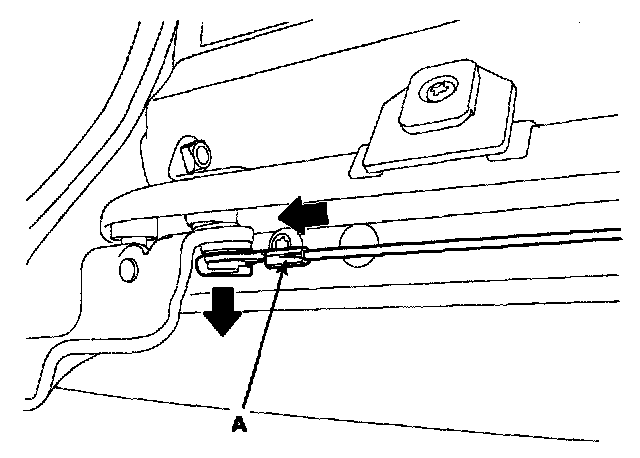

3. Remove the rear cable (A).

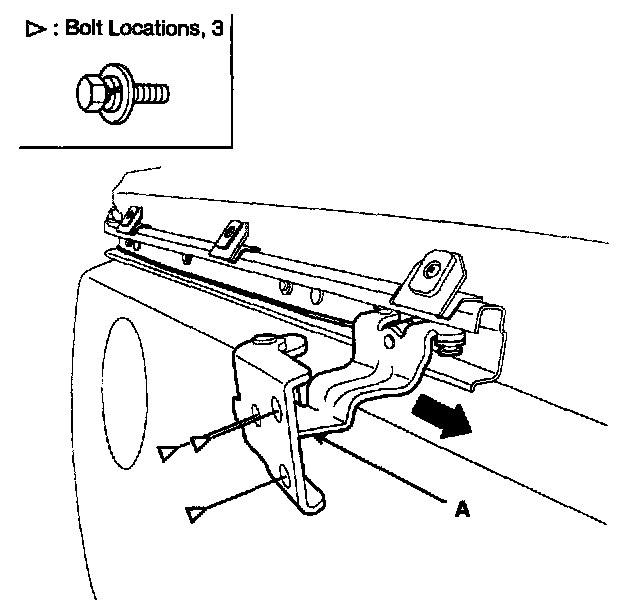

4. Loosen the mounting bolts, remove the bracket (A).




5. Remove the front cable (B).
6. Disconnect the connector.

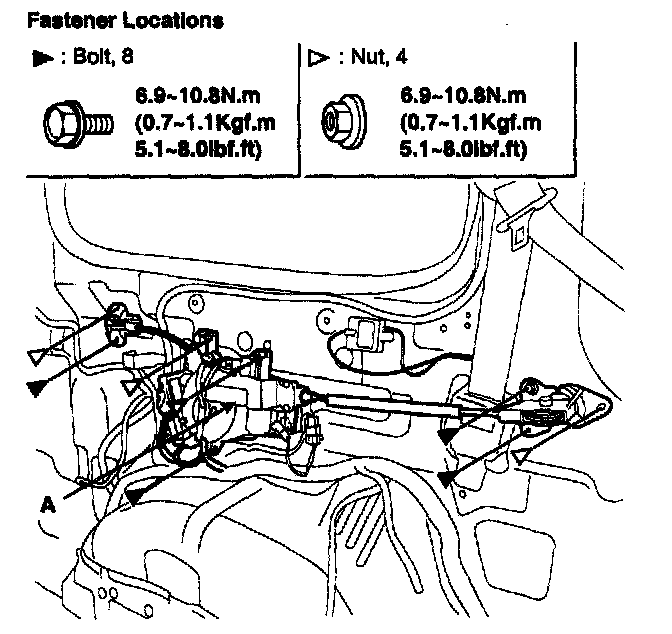

7. After removing the motor mounting and nut, remove the motor (A).
8. Installation is the reverse of removal.
