Audio Assembly Replacement

AUDIO ASSEMBLY REPLACEMENT
1. Remove the center facia panel.

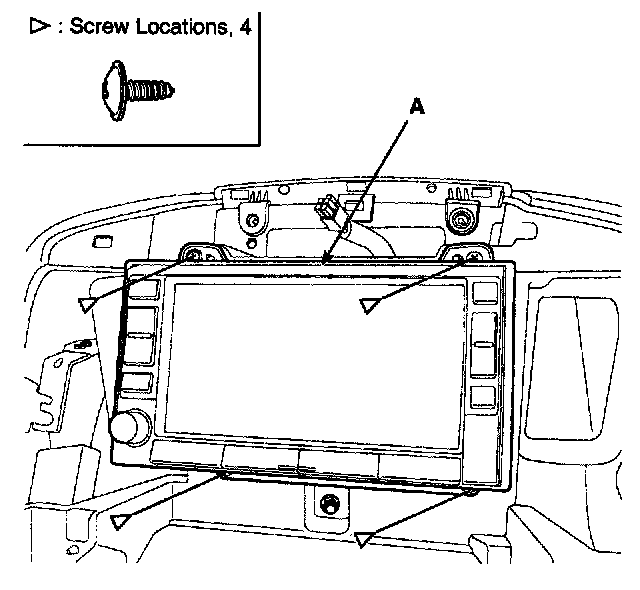

2. Loosen the screws.

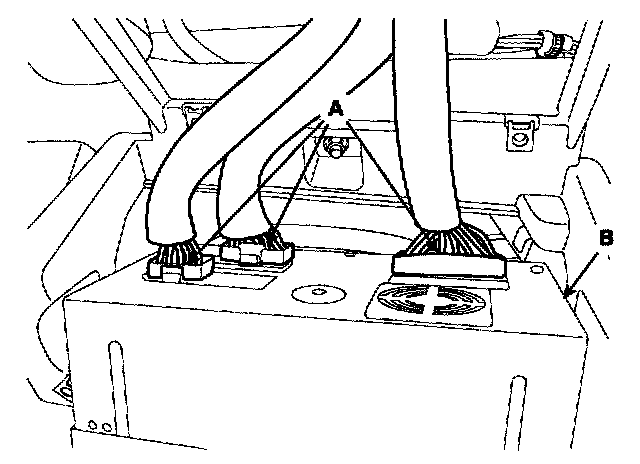

3. Disconnect the connector (A), then remove the audio assembly (B).
4. Installation is the reverse of removal.

NOTE: Make sure the connector are plugged in properly.
