Air Conditioning Switch: Testing and Inspection

Air Conditioning-A/C Switch:

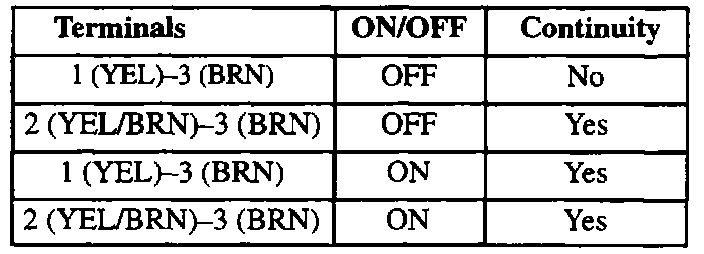

1. Remove the A/C switch and check continuity between terminals, using wire colors as a guide to terminal numbers.
2. If not as specified, replace switch.
