Engine Torque Specifications

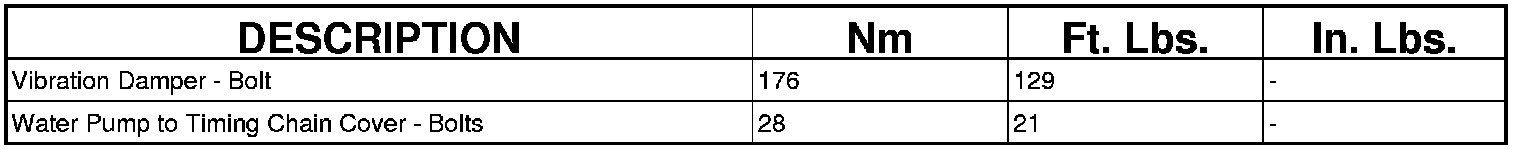

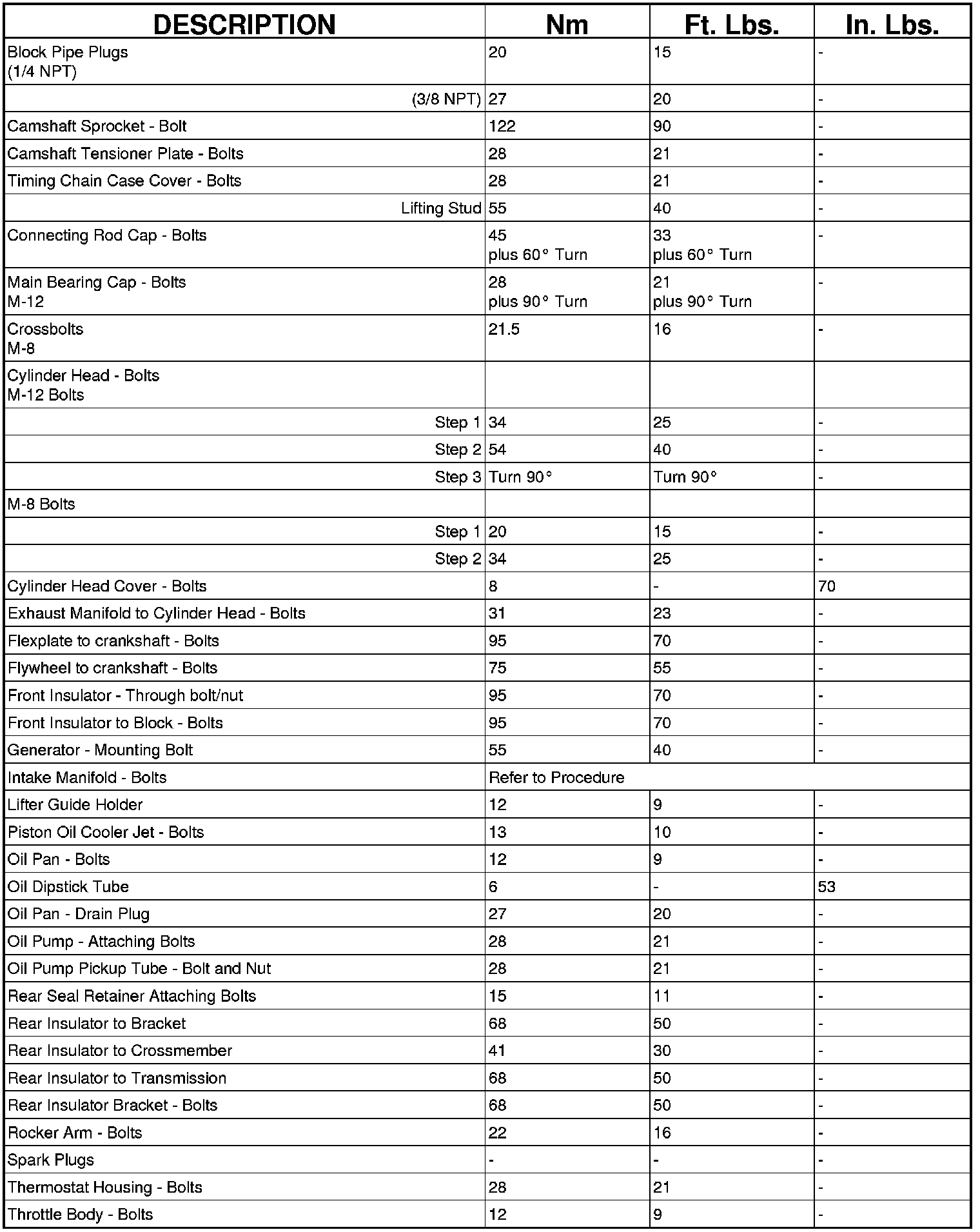

TORQUE CHART 6.1L ENGINE
CYLINDER HEAD

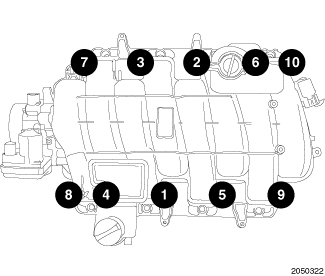

INTAKE MANIFOLD
Intake Manifold Bolts 12 Nm (9 ft. lbs).

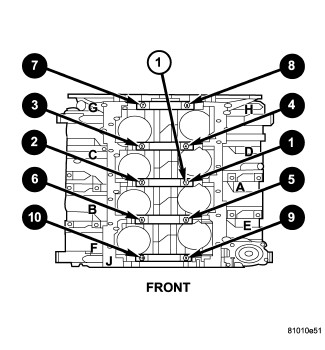

MAIN BEARING CAP
FLYWHEEL/FLEX PLATE

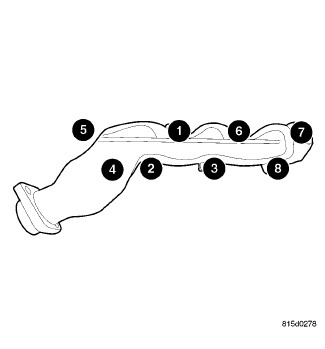

EXHAUST MANIFOLD
TORQUE CHART 6.1L ENGINE
CYLINDER HEAD
INTAKE MANIFOLD
Intake Manifold Bolts 12 Nm (9 ft. lbs).
MAIN BEARING CAP
FLYWHEEL/FLEX PLATE
EXHAUST MANIFOLD
