Electronic Brake Control Module
Electronic Brake Control Module

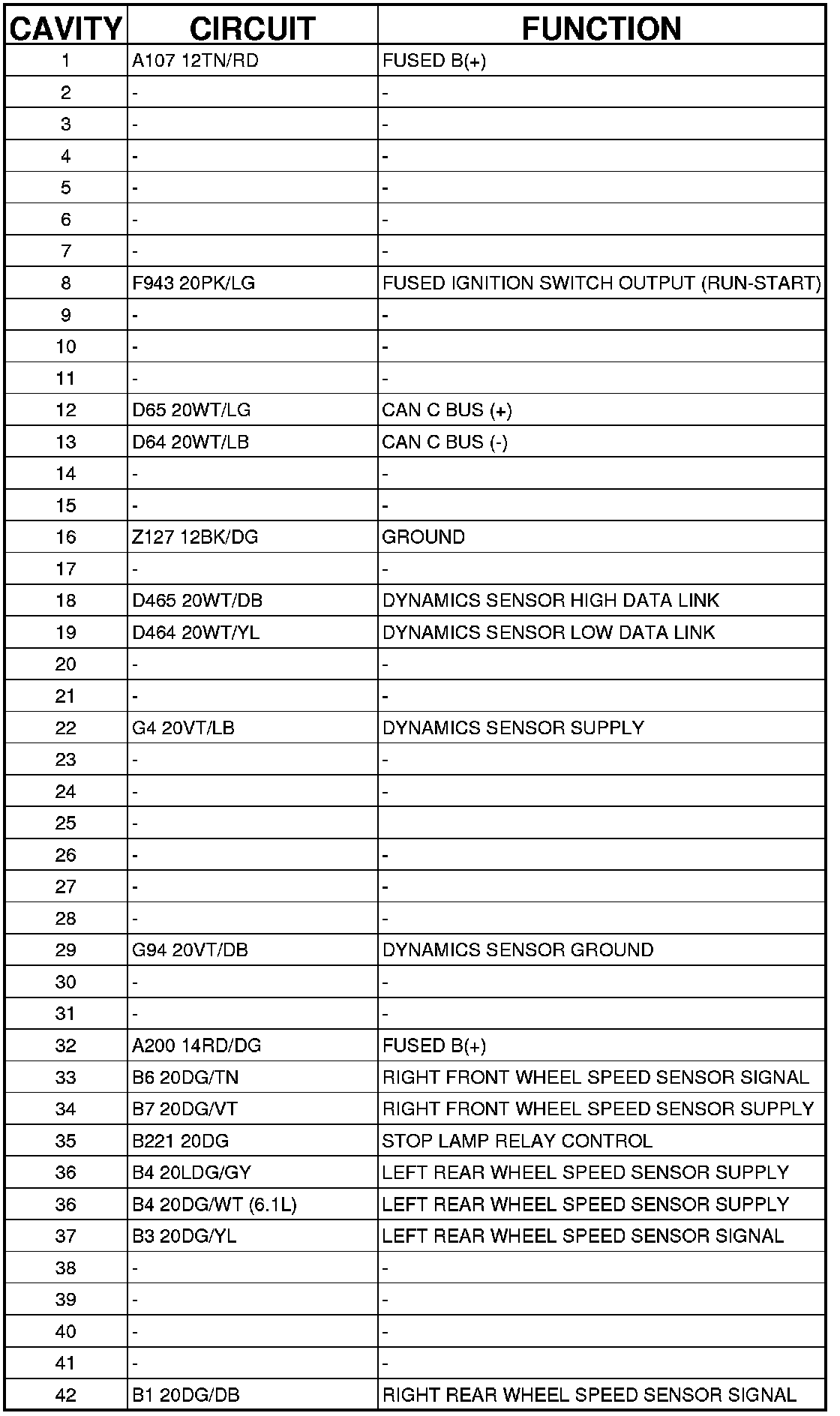

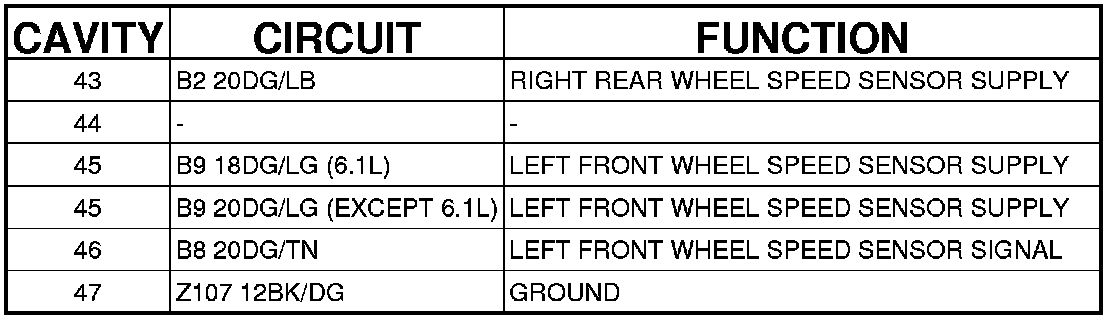

Connector - (HEADLAMP AND DASH) 47 WAY

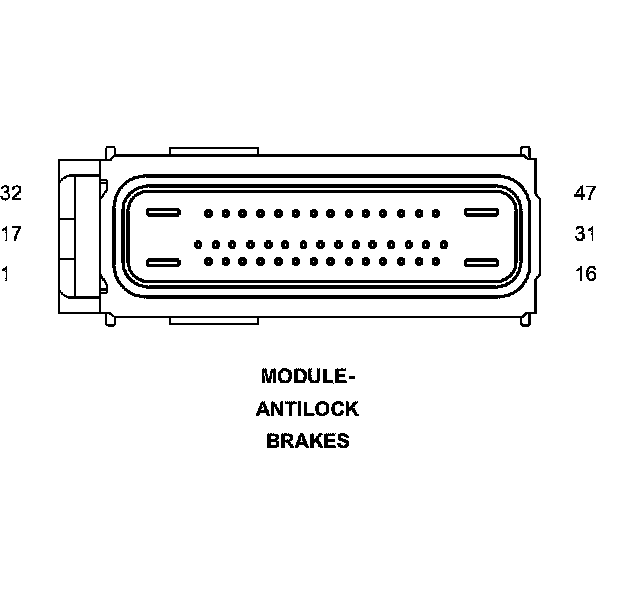

MODULE-ANTILOCK BRAKES - (HEADLAMP AND DASH) 47 WAY
