Installation

INSTALLATION

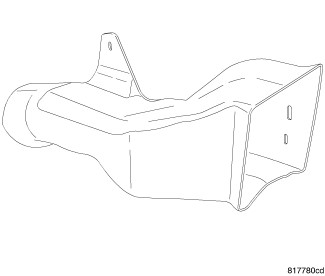

1. Install the duct to the vehicle.

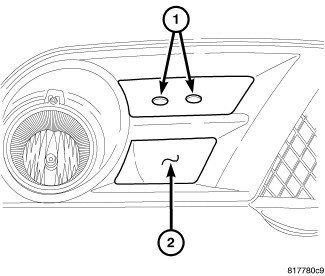

2. Install the push pins (1) to the duct (2) securing it to the fascia.

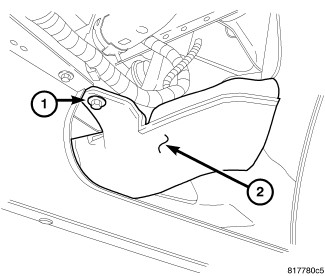

3. Install the bolt (1) securing the duct (2) to the body.
4. Lower the vehicle.
