Universal Transmitter - Installation

INSTALLATION






NOTE: In addition to the Universal Transmitter operation the Electronic Overhead Module (EOM) is responsible for some of the compass functions. Anytime the EOM is replaced the compass variance value must be set, Service and Repair .

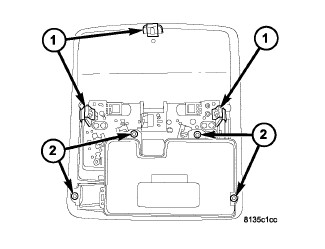

1. Position the EOM onto the overhead console assembly and install the retaining screws (2).
2. Install the overhead console assembly, Overhead Console - Installation.
3. Connect the battery negative cable.
4. Program the universal transmitter codes, Programming and Relearning.
