Front

REMOVAL

2WD





1. Disconnect the negative battery cable.
2. Raise and support the vehicle.
3. Remove the engine mount through bolts (3).

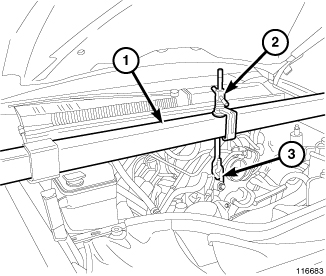

4. Raise the engine using the engine support fixture (1) special tool 8534B.





5. Remove the engine mount to insulator bolts.
6. Remove the insulator from the engine (2).

4WD





1. Disconnect the negative battery cable.
2. Raise and support the vehicle.
3. Remove the skid plate.
4. Remove the front crossmember.
5. Remove the engine oil filter.
6. Support the engine using engine support fixture 8534B (1).
7. Support the front axle with a suitable jack.
8. Remove the bolts that attach the engine mounts to the front axle.
9. Remove the bolts that attach the front axle to the left engine bracket.
10. Lower the front axle.





11. Remove the engine mount through bolts (3).
12. Raise the engine far enough to be able to remove the left and right engine mounts.
13. Remove the engine mounts (2).
