Jeep Truck
>>
2009
>>
Commander 2WD V8-5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Power Outlet
>>
Rear Power Outlet (Body) 3 Way
Rear Power Outlet (Body) 3 Way

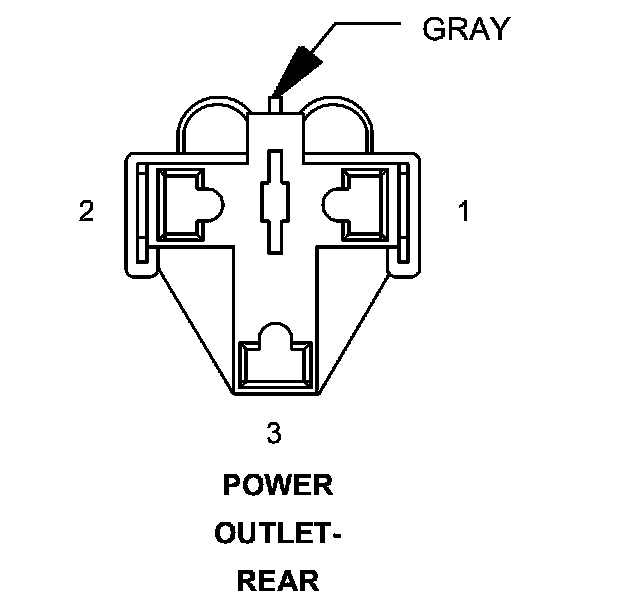

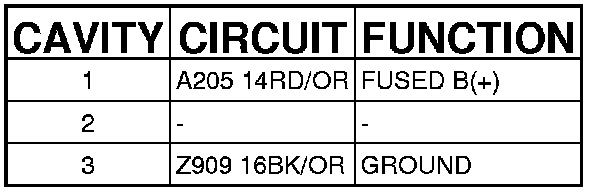

Connector - (BODY) 3 WAY
POWER OUTLET-REAR - (BODY) 3 WAY
