Front Suspension Stabilizer Bar To Frame Bushing - Installation

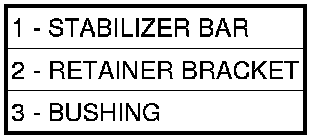

STABILIZER BAR TO FRAME BUSHING










1. Install the stabilizer bar bushing (3) to the bar (1).
2. Install the stabilizer bar bushing retainer bracket (2) bolts and tighten the two mounting bolts.
3. Install the front splash shield.
4. Lower the vehicle.
