Removal

REMOVAL





1. Raise the vehicle on a suitable hoist.
2. Disengage the wiring connector from the shift motor.
3. Remove the bolts (1) holding the shift motor (2) onto the transfer case.

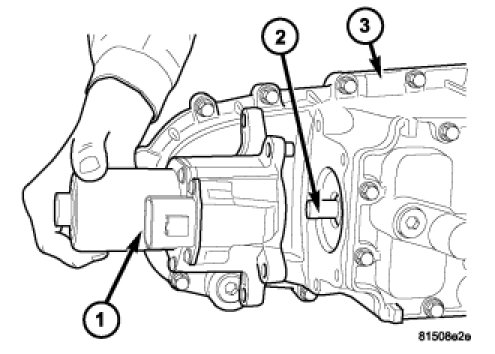

4. Separate the shift motor (1) from the transfer case (3) and shift sector (2).
