Rear Stabilizer Link - Installation

SRT8

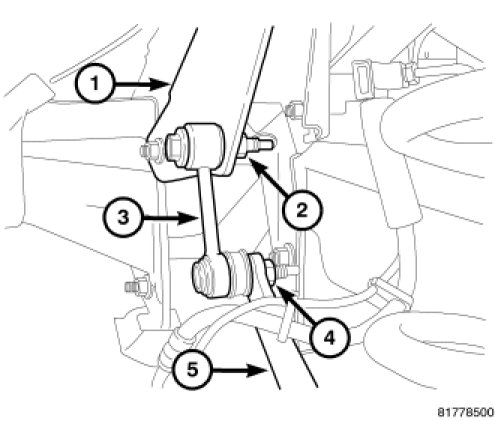

1. Install the upper bolt/nut (2) for the stabilizer link (3) to the bracket (1) and tighten to 102 Nm (75 ft. lbs.).
2. Install the stabilizer link (3) to the stabilizer bar (5).
3. Install the nut (4) and tighten to 88 Nm (65 ft. lbs.).
4. Install the tire and wheel assembly.
5. Lower the vehicle.
