Headlamp

HEADLAMP

CAUTION: Take proper precautions to ensure there is no cosmetic damage done to the paint finish of the headlamp washer nozzle cover or the front fascia during the following procedure.





1. Reach up behind the front fascia to access the washer nozzle supply hose (1) quick connect fitting (4) and seat the molded plastic lock (2) onto the fitting.
2. Push the quick connect fitting onto the headlamp washer nozzle nipple (3) until it snaps into place with an audible click.

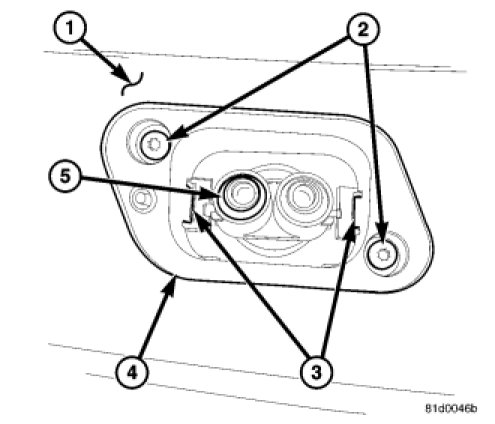

3. Position the headlamp washer nozzle mounting cup (4) to the mounting hole in the front fascia (1).
4. While holding the mounting cup in place with one hand reach up behind the front fascia to engage the washer nozzle (5) with the mounting cup, then press the two pieces together until both latch features of the mounting cup are fully engaged with the mounting flange of the nozzle.
5. Remove the clamp from the washer supply hose.
6. Install and tighten the two screws (2) that secure the mounting cup to the nozzle mounting flange. Tighten the screws securely.
7. Pull the telescopic nozzle out to its fully extended position.
8. With the nozzle extended, Engage the latch features on each side of the headlamp washer nozzle cover to the sides of the nozzle, then release the nozzle back to its retracted position.
