Right
RIGHT
Camshaft retainers 9 Nm (80 in. lbs.)

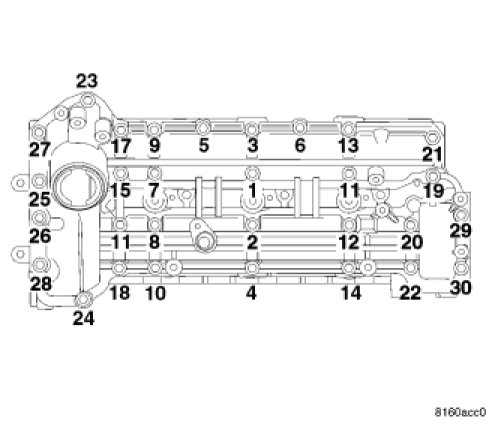

Cylinder head cover. Tighten the bolts in three stages following the sequence provided. First to 4 Nm (35 in. lbs.), then to 6 Nm (53 in. lbs.), and then to 8.4 Nm (75 in. lbs.).
RIGHT
Camshaft retainers 9 Nm (80 in. lbs.)
Cylinder head cover. Tighten the bolts in three stages following the sequence provided. First to 4 Nm (35 in. lbs.), then to 6 Nm (53 in. lbs.), and then to 8.4 Nm (75 in. lbs.).
