Removal

REMOVAL - 3.0L DIESEL

1. Disconnect the negative battery cable.
2. Remove the left intake manifoldIntake Manifold - Removal.

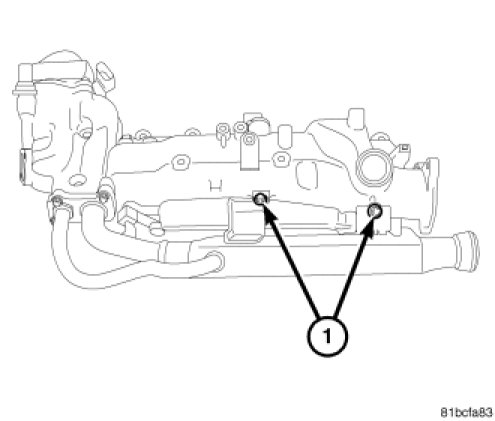

3. Remove the 2 upper EGR cooler bolts (1).

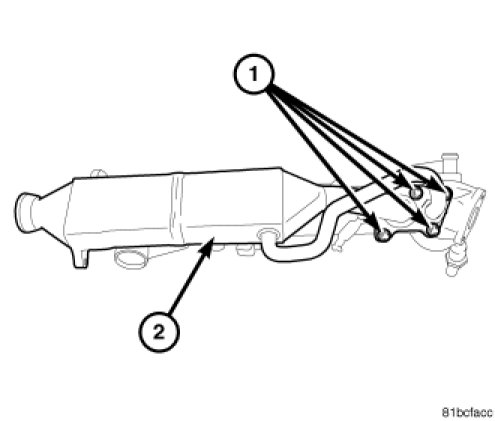

4. Remove the 4 front EGR cooler retaining bolts (1) and EGR cooler (2).
