Air Outlets - Installation

INSTALLATION

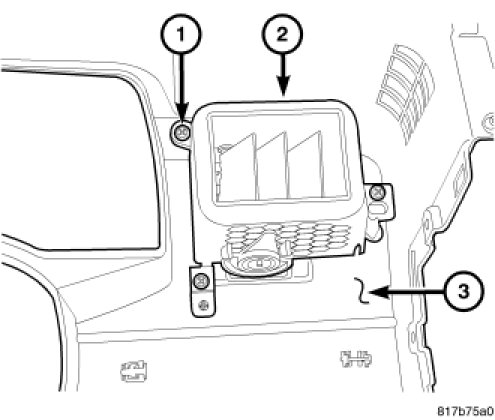

NOTE: Driver side air outlet shown. Passenger side outlet similar.





1. Position the air outlet (2) onto the bezel or cover (3).
2. Install the three screws (1) that secure the air outlet. Tighten the screws to 2 Nm (17 in. lbs.).
3. Depending on the outlet being serviced, install the instrument cluster bezel Instrument Panel Cluster Bezel - Installation or the instrument panel top cover Instrument Panel Cover - Installation.
