Hose From Cooler To Reservoir

HOSE FROM COOLER TO RESERVOIR

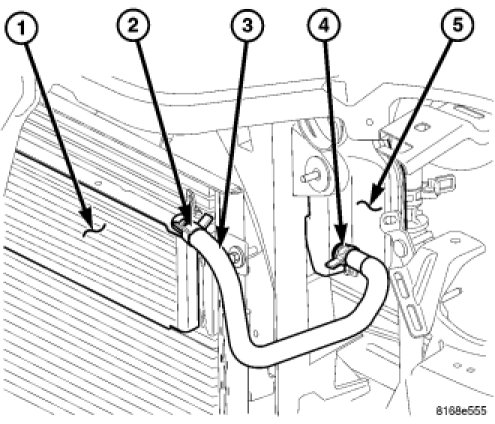

1. Install the fluid cooler hose (3) and spring clamp (4) to the reservoir (5).
2. Reinstall the reservoir (5) into the mounting slot.
3. Install the fluid cooler hose (3) and spring clamp (2) to the fluid cooler (1).
4. Refill the power steering fluid and bleed the system Service and Repair.
5. Start engine and check for leaks.




6. Install the grille and the 6 grille push pins (1).
7. Install the hood weather-strip seal (2) at the radiator cowl.
