Front Wheel Stud

FRONT WHEEL STUD





CAUTION: Do not use a hammer to remove wheel studs.

1. Raise and support vehicle.
2. Remove wheel and tire assembly.
3. Remove brake caliper, caliper adapter and rotor,Brake Rotor - Removal.

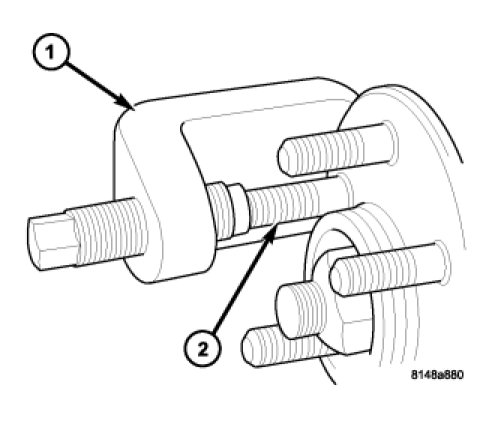

4. Remove stud (2) from hub with Remover C-4150-A (1).
