Installation

INSTALLATION





1. Install the fluid level sensor (1) into the reservoir (2) if removed.

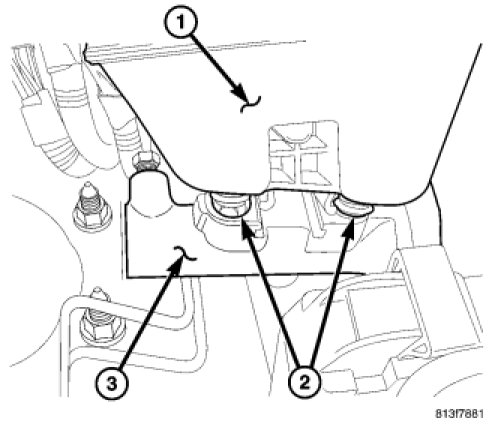

2. Lubricate new o-rings (2) with clean brake fluid.

CAUTION: Do not use tools to install the o-rings. Tools may cut, or tear the o-rings. Install the o-rings using finger pressure only.

3. Start reservoir in o-rings then press the reservoir straight down to seat the reservoir into the cylinder o-rings.

CAUTION: Do not rock the reservoir during installation.

4. Verify retaining tabs are seated.




5. Install the wire connector to the brake fluid level sensor (2).
6. Remove brake pedal prop rod.
7. Fill master cylinder.
