Recall - Clutch Pedal Pushrod Replacement: Overview
August 2006Dealer Service Instructions for:
Safety Recall F22 - Clutch Pedal Pushrod
Models
2006 (TJ) Jeep(R) Wrangler
NOTE:
This recall applies only to the above vehicles equipped with a manual transmission built from November 3, 2005 through February 13, 2006
(MDH 110306 through 021306).
IMPORTANT:
Many of the vehicles within the above build period have already
been repaired and, therefore, have been excluded from this recall.
Subject
The clutch pedal pushrod on about 6,600 of the above vehicles may break and allow clutch engagement when the pedal is depressed. This can increase the vehicle's stopping distance and/or cause engine stalling, which can result in a crash without warning.
Repair
The clutch pedal pushrod, plastic spacer, foam seal, and interlock switch cover must be replaced.

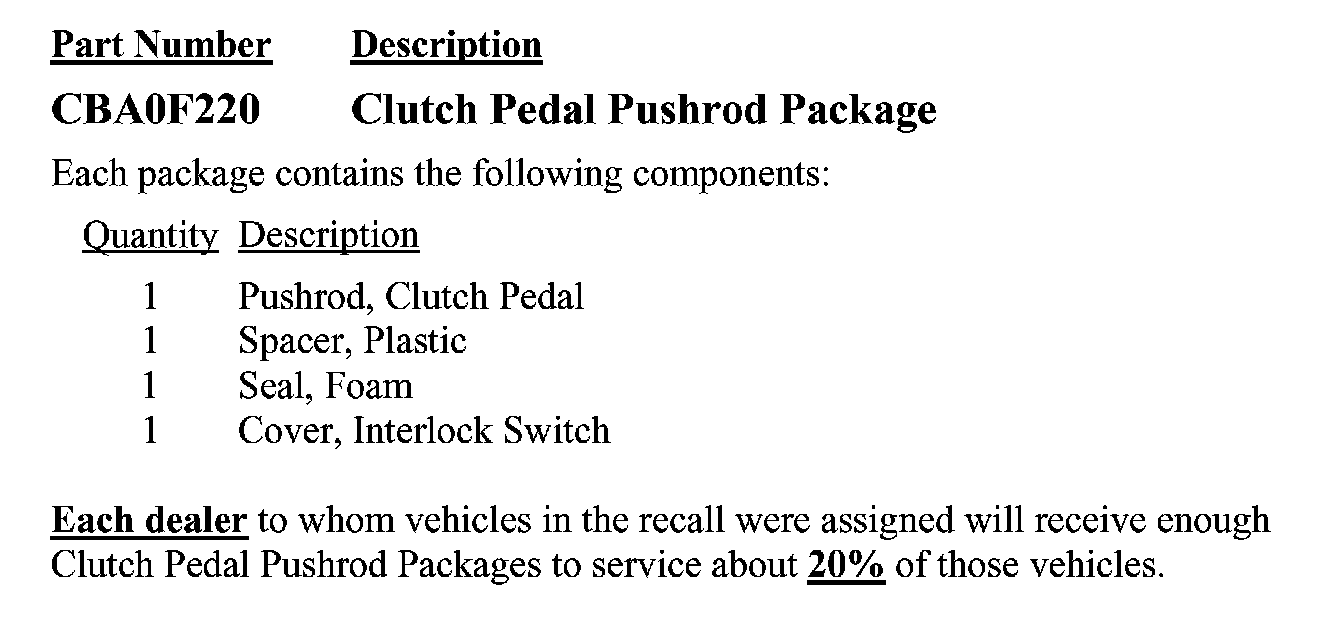

Parts Information

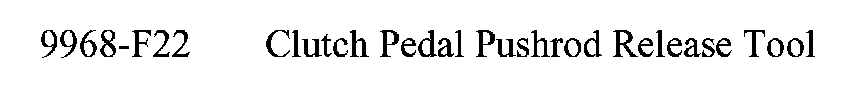

Special Tools
This special tool (shown) is required to perform this repair.
All dealers were sent one (1) Clutch Pedal Pushrod Release Tool in late July, 2006 free of charge.
Additional release tools may be purchased from Miller Special Tools by calling 1-800-801-5420.
NOTE:
Additional release tools are not reimbursable by DaimlerChrysler.
Completion Reporting and Reimbursement
Claims for vehicles that have been serviced must be submitted on the
DealerCONNECT Claim Entry Screen located on the Service tab. Claims
submitted will be used by DaimlerChrysler to record recall service completions and provide dealer payments.

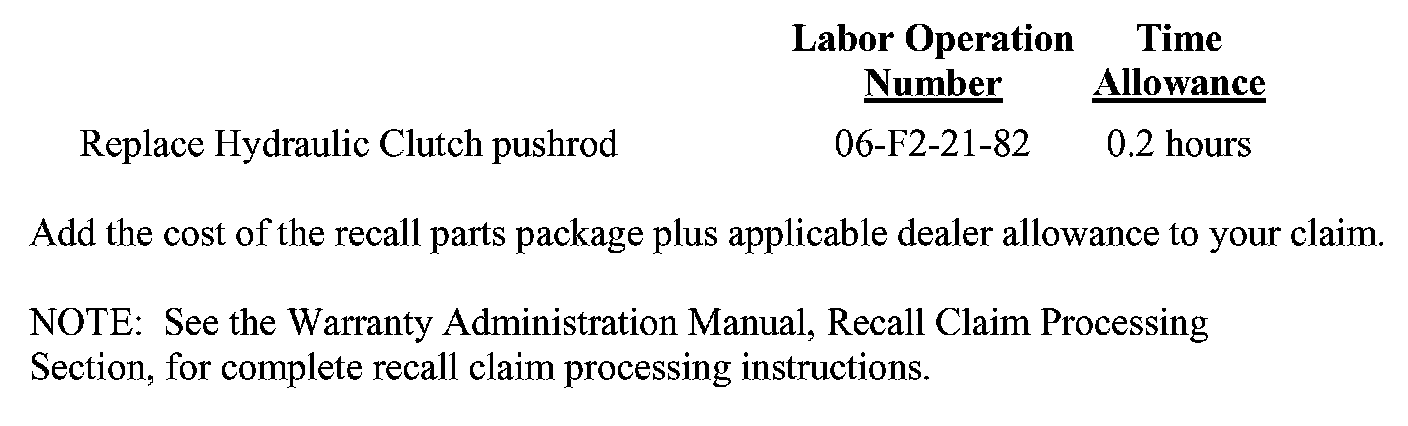

Use the labor operation number and time allowance shown.
Dealer Notification
All dealers will receive a copy of this dealer recall notification letter by mail. Two additional copies will be sent through the DCMMS. To view this notification on DealerCONNECT, select "Global Recall System" on the Service tab, then click on the description of this notification.
Owner Notification and Service Scheduling
All involved vehicle owners known to DaimlerChrysler are being notified of the service requirement by first class mail. They are requested to schedule appointments for this service with their dealers. A generic copy of the owner letter is included.
Enclosed with each owner letter is an Owner Notification postcard to allow owners to update our records if applicable.
Dealers are encouraged to consider alternative scheduling and servicing approaches for this recall. This repair does not require hoists or other full service facility special equipment and is a DaimlerChrysler Mobile Service approved repair.
Vehicle Lists, Global Recall System, VIP and Dealer Follow Up
All involved vehicles have been entered into the DealerCONNECT Global Recall System (GRS) and Vehicle Information Plus (VIP) for dealer inquiry as needed.
GRS provides involved dealers with an updated VIN list of their incomplete
vehicles. The owner's name, address and phone number are listed if known.
Completed vehicles are removed from GRS within several days of repair claim submission.
To use this system, click on the "Service" tab and then click on "Global Recall System." Your dealer's VIN list for each recall displayed can be sorted by: those vehicles that were unsold at recall launch, those with a phone number, city, zip code, or VIN sequence.
Dealers must perform this repair on all unsold vehicles before retail delivery.
Dealers should also use the VIN list to follow up with all owners to schedule appointments for this repair.
Recall VIN lists may contain confidential, restricted owner name and address information that was obtained from the Department of Motor Vehicles of various states. Use of this information is permitted for this recall only and is strictly prohibited from all other use.
Additional Information
If you have any questions or need assistance in completing this action, please contact your Service and Parts District Manager.
Customer Services Field Operations
DaimlerChrysler Corporation
