Rear Fog Lamp Unit

REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove the screws that secure the rear fog lamp unit to the rear bumper assembly.

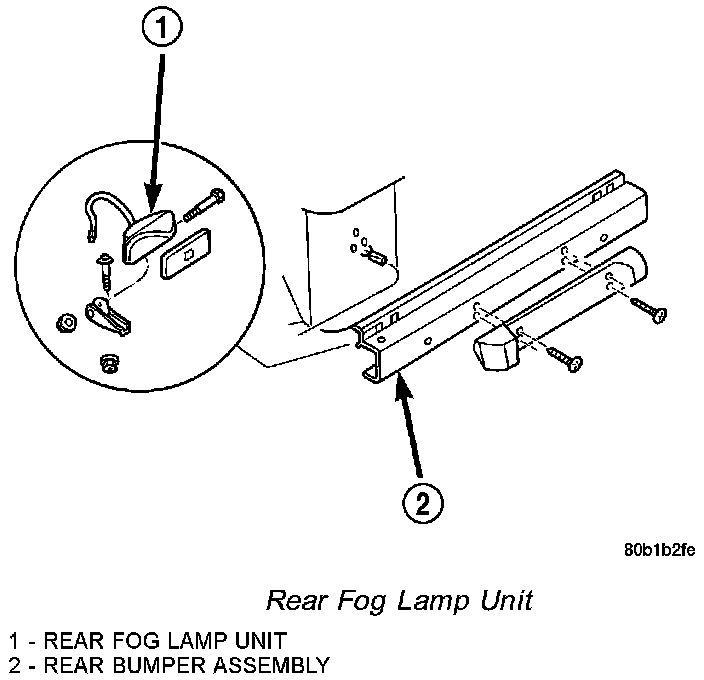

Rear Fog Lamp Unit:

3. Disconnect the wire harness connector from the rear fog lamp connector.
4. Remove the rear fog lamp unit from the vehicle.

INSTALLATION
1. Position the rear fog lamp unit to the vehicle.
2. Connect the wire harness connector to the rear fog lamp connector.
3. Install the screws that secure the rear fog lamp unit to the rear bumper assembly.
4. Reconnect the negative battery cable.
