Differential Case Bearings

FRONT AXLE - 181FBI

BEARINGS - DIFFERENTIAL CASE

REMOVAL

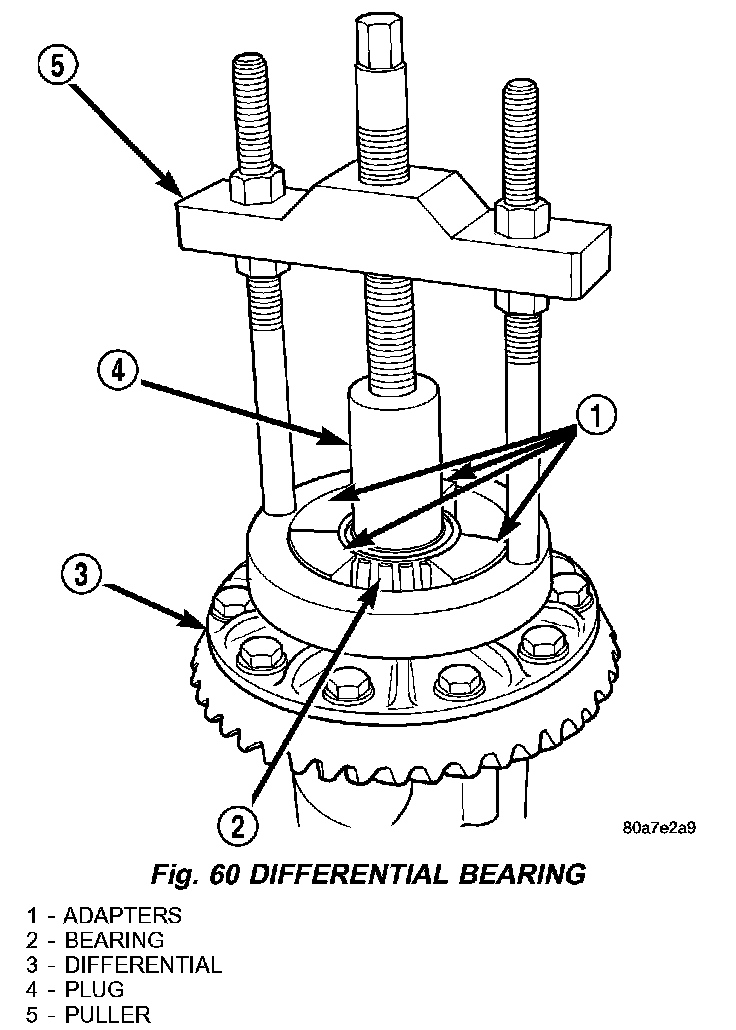

Fig. 60 DIFFERENTIAL BEARING:

1. Remove bearings from the differential case with Puller/Press C-293-PA, C-293-39 Adapter and Plug SP-3289 (Fig. 60).

INSTALLATION

NOTE: If replacement differential side bearings or differential case are being installed, differential side bearing shim requirements may change. Refer to Adjustments (Differential Bearing Preload and Gear Backlash) to determine the proper shim selection.

1. Install differential side bearing shims onto differential case hubs.

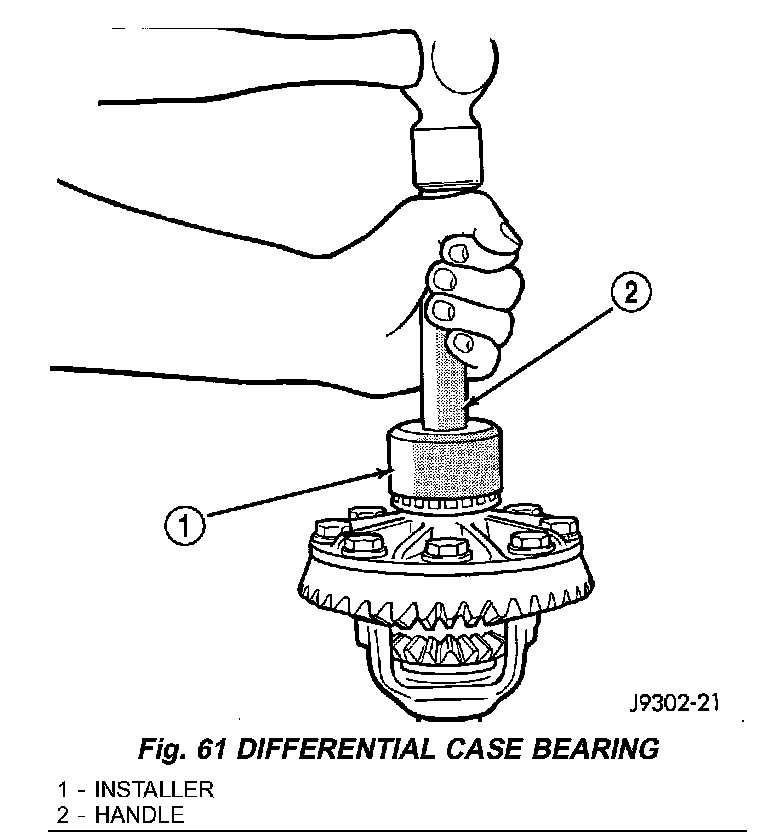

Fig. 61 DIFFERENTIAL CASE BEARING:

2. Install differential side bearings with Installer C-3716-A and Handle C-4171 (Fig. 61).
