Rear Suspension

LOWER CONTROL ARM

REMOVAL
1. Raise and support the vehicle.

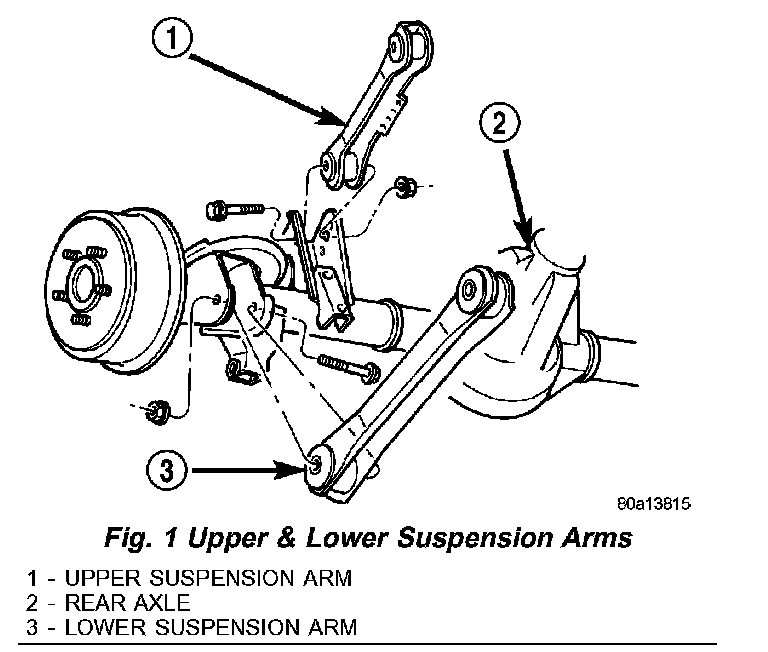

Fig. 1 Upper & Lower Suspension Arms:

2. Remove the lower suspension arm nut and bolt at the axle bracket (Fig. 1).

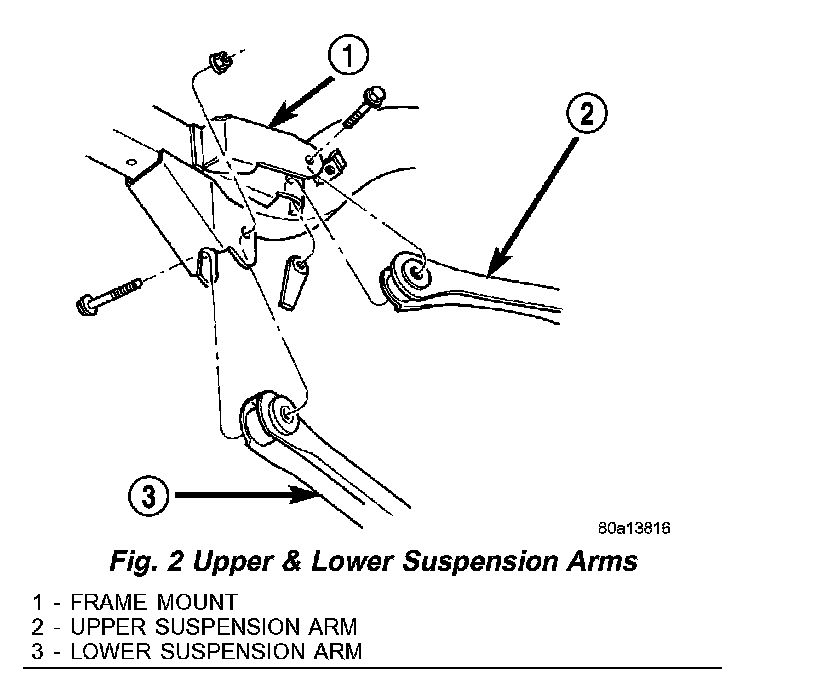

Fig. 2 Upper & Lower Suspension Arms:

3. Remove the nut and bolt at the frame rail mount (Fig. 2) and remove the lower suspension arm.

INSTALLATION
1. Position the lower suspension arm in the axle bracket and frame rail mount.
2. Install the mounting bolts and finger tighten the nuts.
3. Remove the supports and lower the vehicle.
4. Tighten the lower suspension arm nuts to 203 Nm (150 ft. lbs.).
