Power Steering Pump: Testing and Inspection

DIAGNOSIS AND TESTING - PUMP LEAKAGE

Pump Leakage Diagnosis:

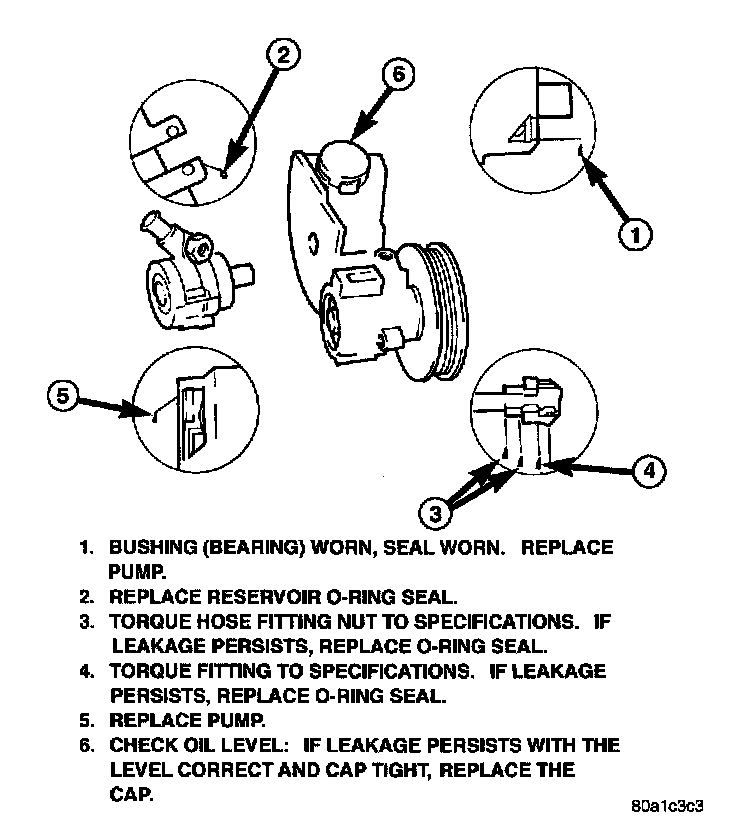

1. Possible areas of pump leakage.
