Fuel Injector: Diagrams

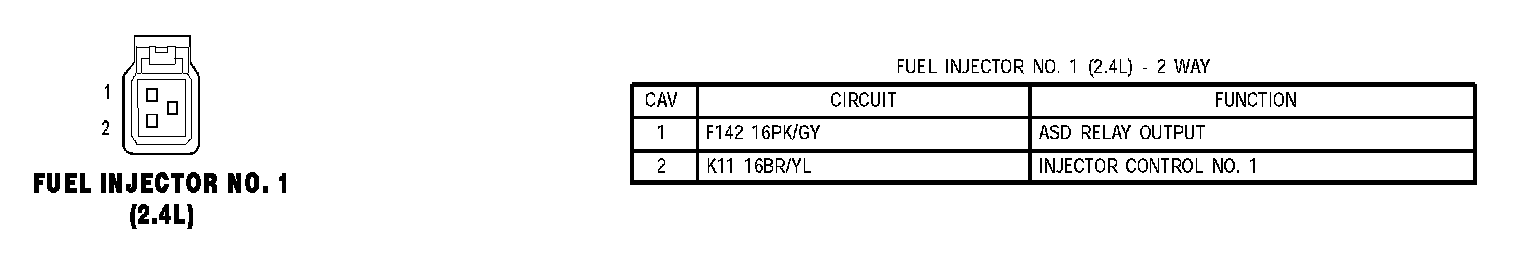

Fuel Injector No.1 (2.4L):

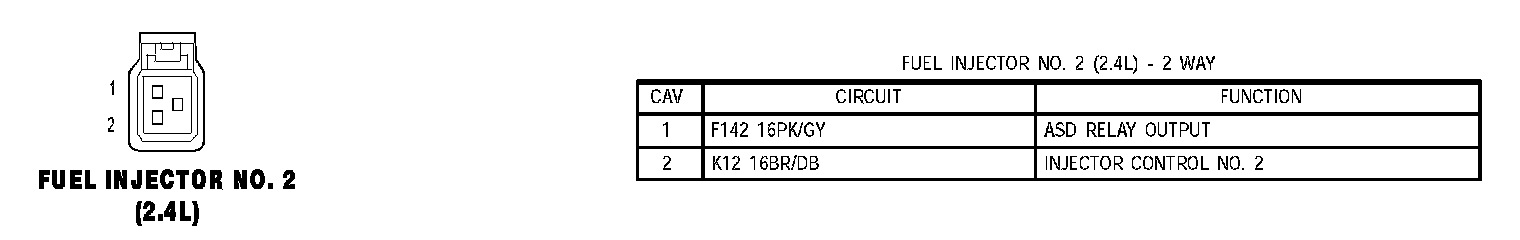

Fuel Injector No.2 (2.4L):

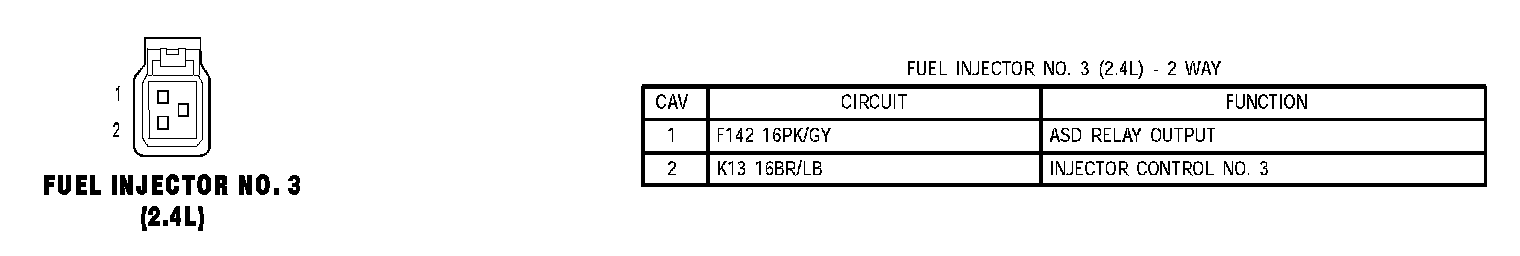

Fuel Injector No.3 (2.4L):

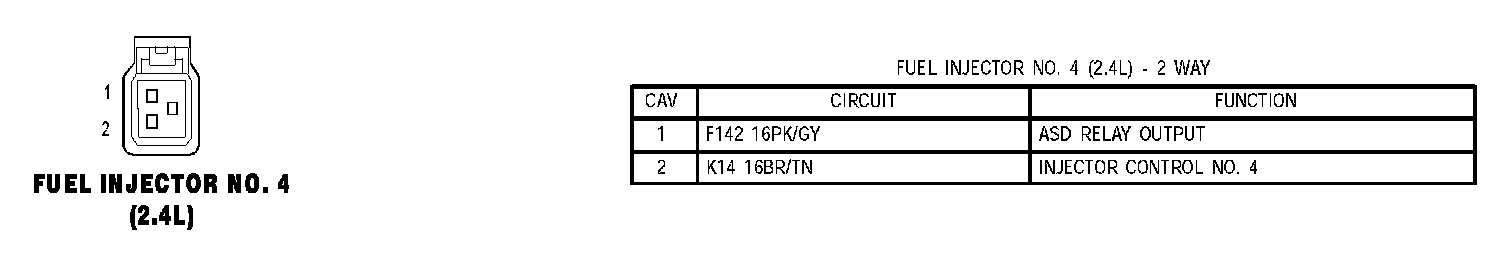

Fuel Injector No.4 (2.4L):
