Underhood Lamp: Service and Repair

REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Disconnect the wire harness connector from the underhood lamp .

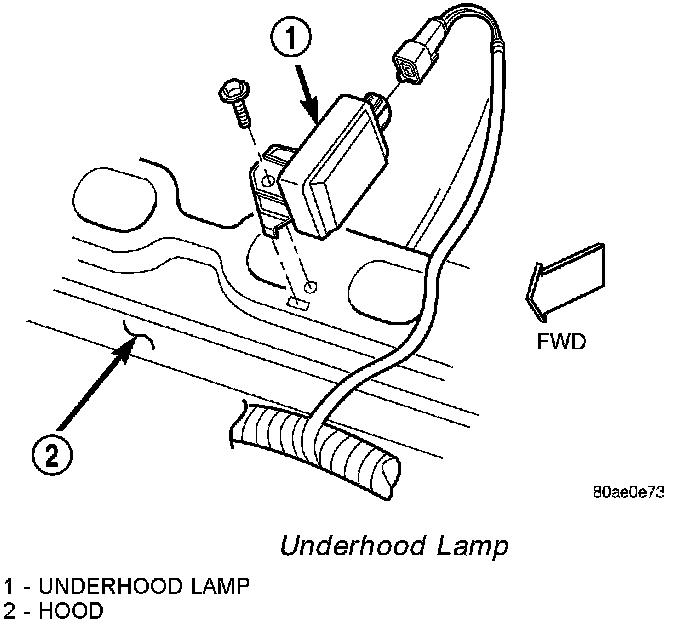

Underhood Lamp:

3. Remove the screw that secures the underhood lamp to the inner hood panel.
4. Remove the underhood lamp from the vehicle.

INSTALLATION
1. Position the underhood lamp onto the inner hood panel.
2. Install the screw that secures the underhood lamp to the inner hood panel. Tighten the screw securely.
3. Connect the wire harness connector to the underhood lamp.
4. Reconnect the negative battery cable.
