Tail Light Bulb: Service and Repair

REMOVAL

1. Disconnect and isolate the negative battery cable.

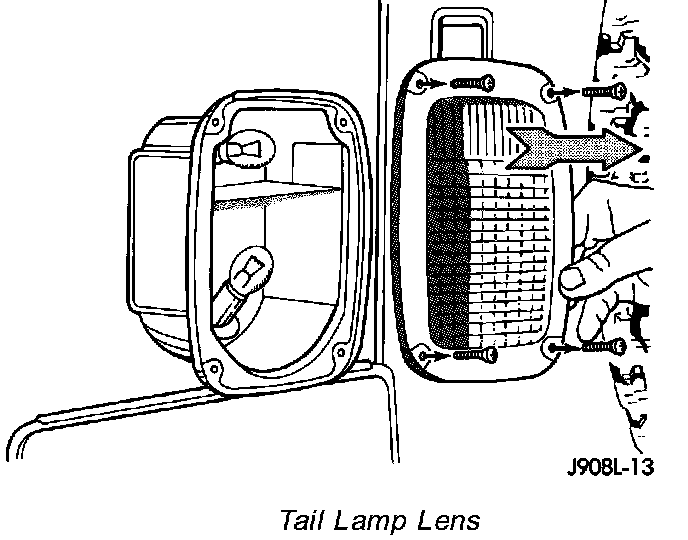

Tail Lamp Lens:

2. Remove the screws that secure the tail lamp lens to the tail lamp housing .
3. Remove the tail lamp lens and gasket from the tail lamp housing.
4. Push and rotate the lamp(s) one-third turn counterclockwise, then pull the lamp straight out of the socket

INSTALLATION

1. Install the lamp(s) by pushing the lamp into the tail lamp socket and turning it one-third clockwise.

NOTE: Install the tail lamp lens with the clear portion (back-up lens) at the top of the housing. Make sure that the gasket is correctly in place and not twisted or torn.

2. Install the tail lamp lens and gasket onto the tail lamp housing.

NOTE: Do not overtighten the screws or damage to the tail lamp lens may result.

3. Install the screws that secure the tail lamp lens to the tail lamp housing. Tighten the screws securely.
4. Reconnect the negative battery cable.
