Rear Fog Lamp

REMOVAL
1. Disconnect and isolate the battery negative cable.

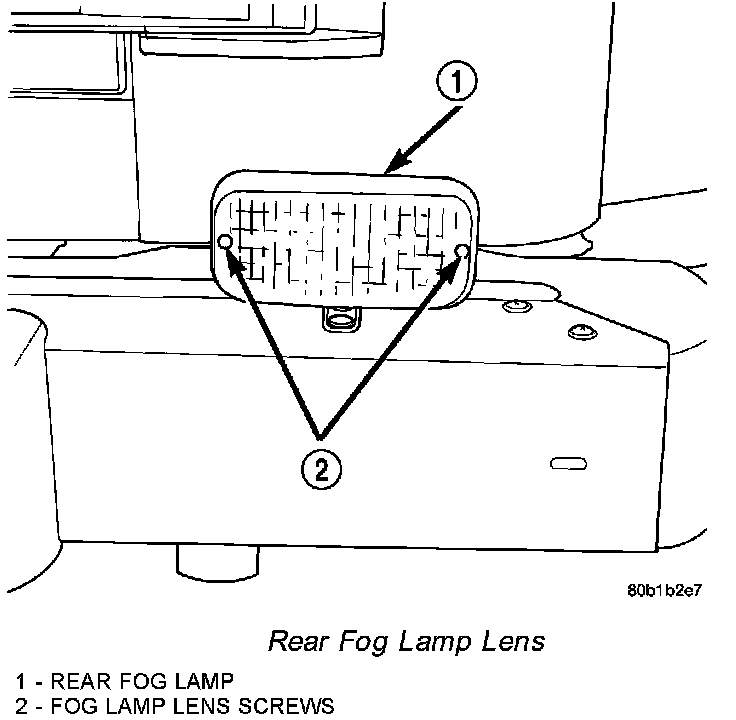

Rear Fog Lamp Lens:

2. Remove the screws that secure the rear fog lamp lens to the housing.

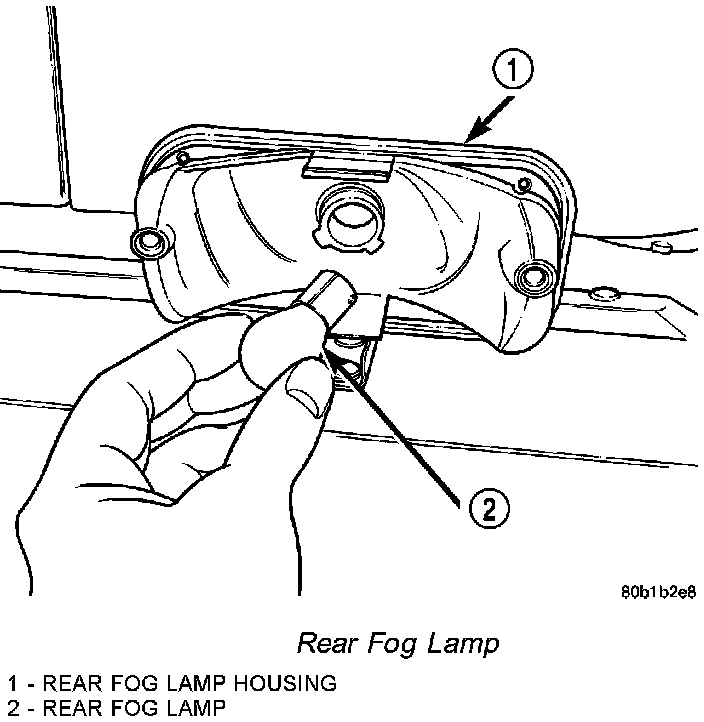

Rear Fog Lamp:

3. Push and rotate the rear fog lamp one-third turn counterclockwise, then pull the lamp straight out of the socket .

INSTALLATION

1. Install the rear fog lamp by pushing the lamp into the rear fog lamp socket and turning it one-third clockwise.
2. Position the rear fog lamp lens onto the housing.
3. Install the screws that secure the rear fog lamp lens onto the housing.
