Fog/Driving Lamp: Adjustments

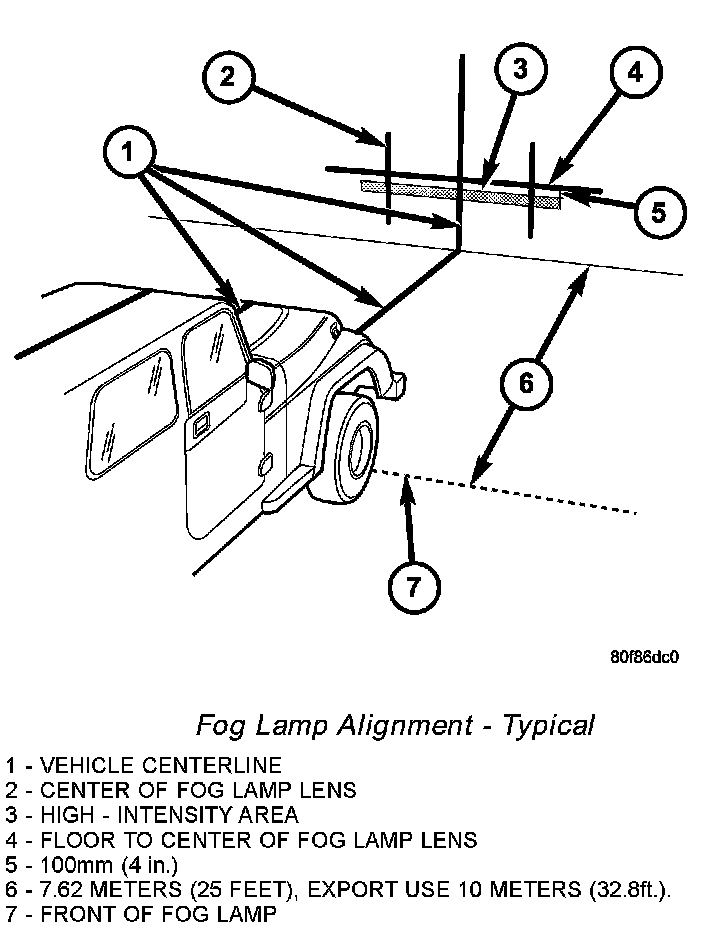

Fog Lamp Alignment - Typical:

Prepare an alignment screen. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp centerline and straight ahead .

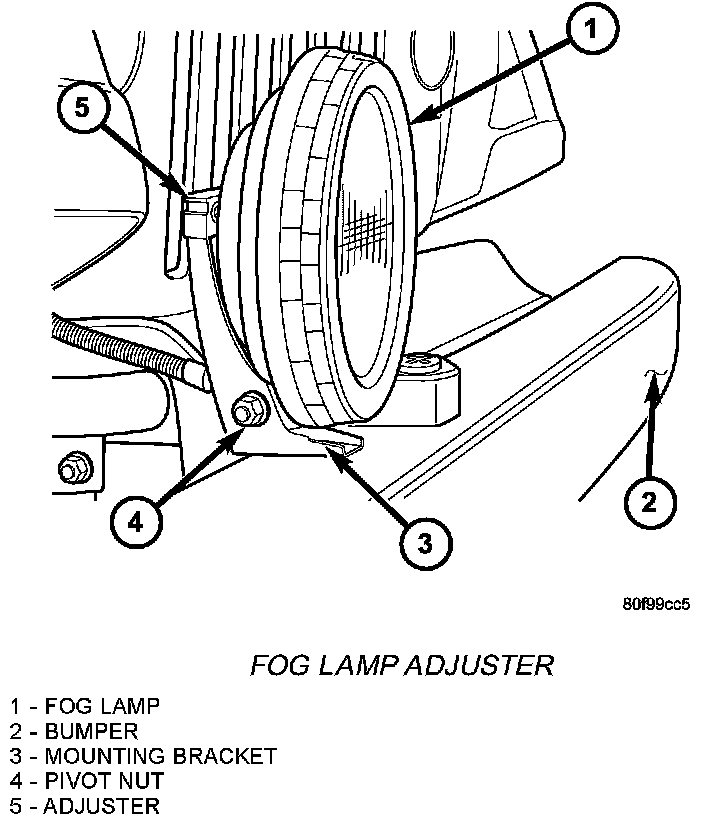

Fog Lamp Adjuster:

1. For adjustment, loosen the pivot nut and turn the foglamp adjusting screw (rear center of lamp)clockwise for up, counterclockwise for down, then retighten the pivot nut .
