Cabin Ventilation Grille: Service and Repair

EXHAUSTER

REMOVAL

1. Remove the spare tire carrier.

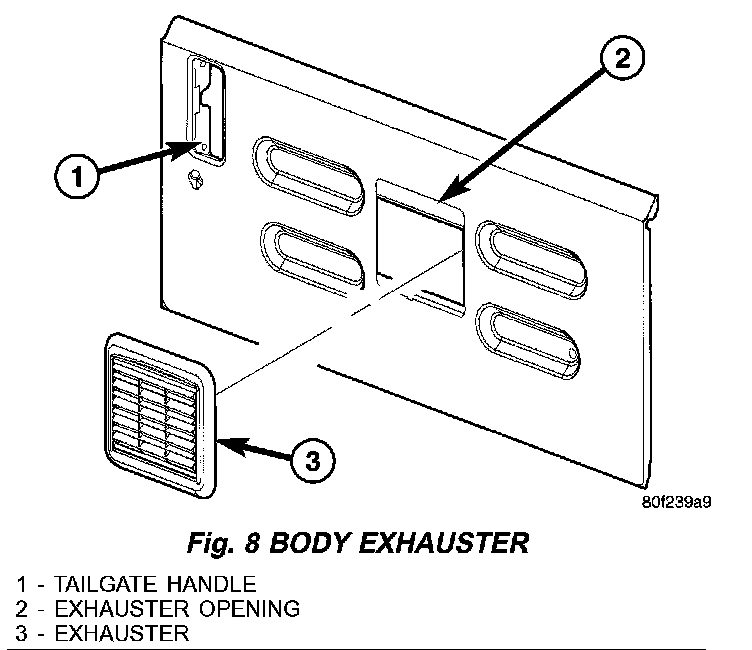

Fig. 8:

2. Using a trim stick C-4755 or equivalent, separate the exhauster from the tailgate. (Fig. 8)

INSTALLATION

1. Install the exhauster and seat fully.
2. Install the spare tire carrier.
