Home
>>
Jeep Truck
>>
2006
>>
TJ (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Gear Sensor/Switch, Transfer Case
Gear Sensor/Switch, Transfer Case

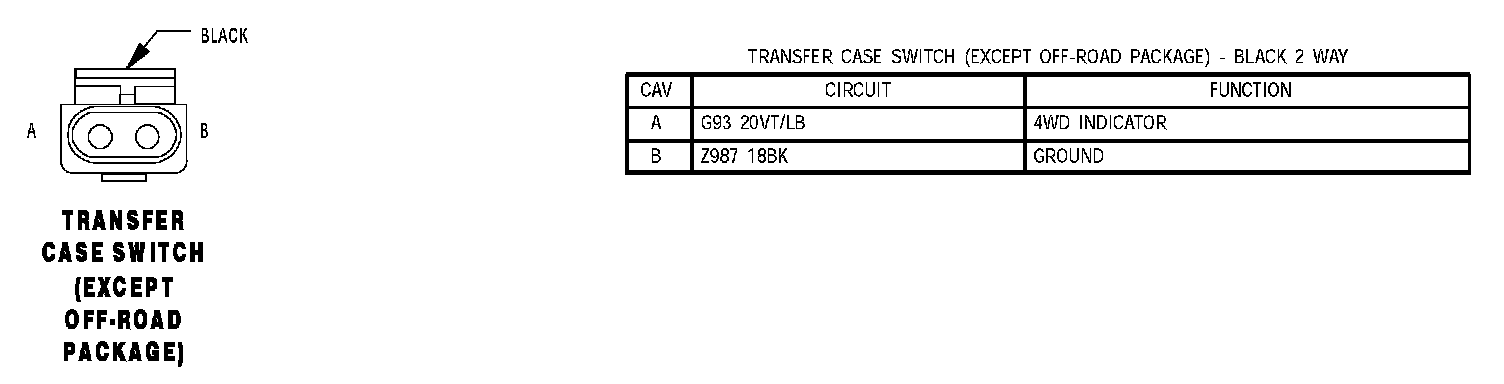

Transfer Case Switch (Except Off Road Package):

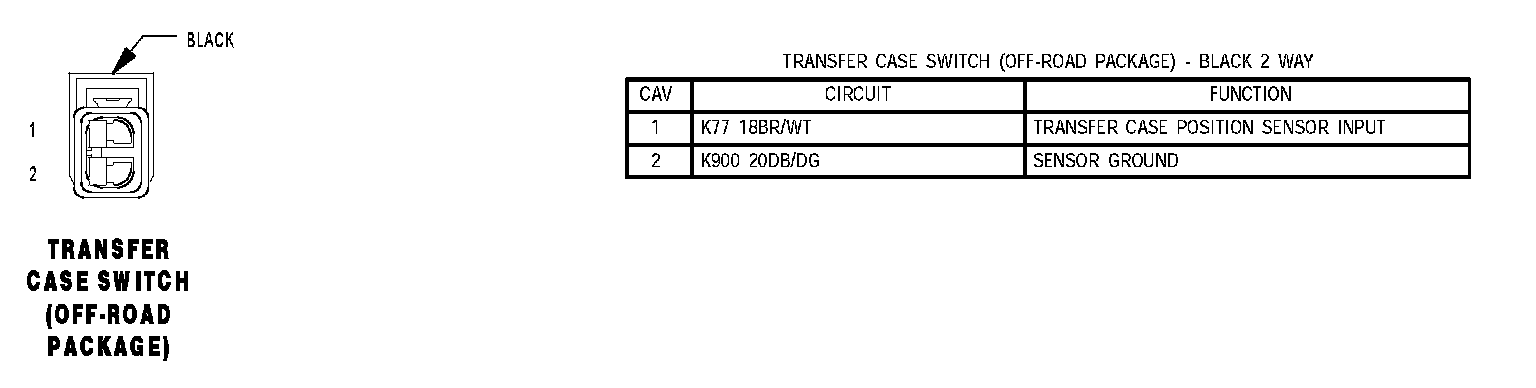

Transfer Case Switch (Off Road Package):
