Clockspring Assembly / Spiral Cable, Air Bag
Clockspring Assembly / Spiral Cable, Air Bag

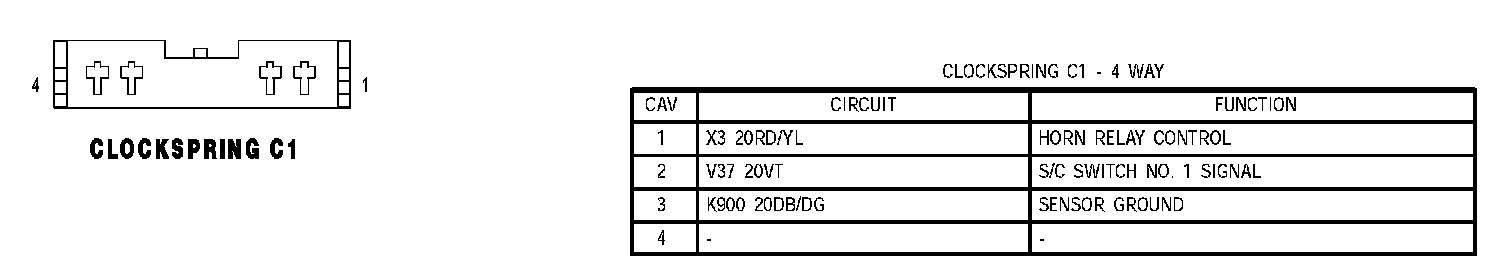

Clockspring C1:

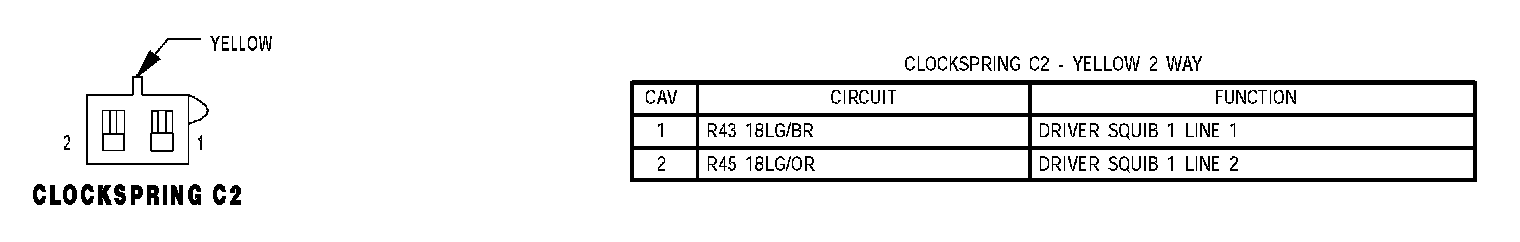

Clockspring C2:
Clockspring C3:

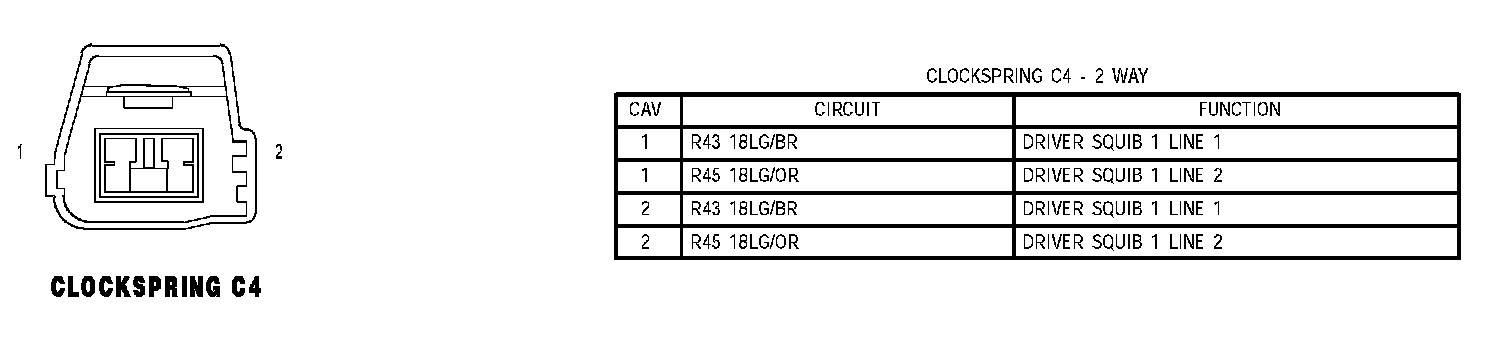

Clockspring C4:
