Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Jeep Truck
>>
2006
>>
TJ (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C102 - C326
>>
C182
C182

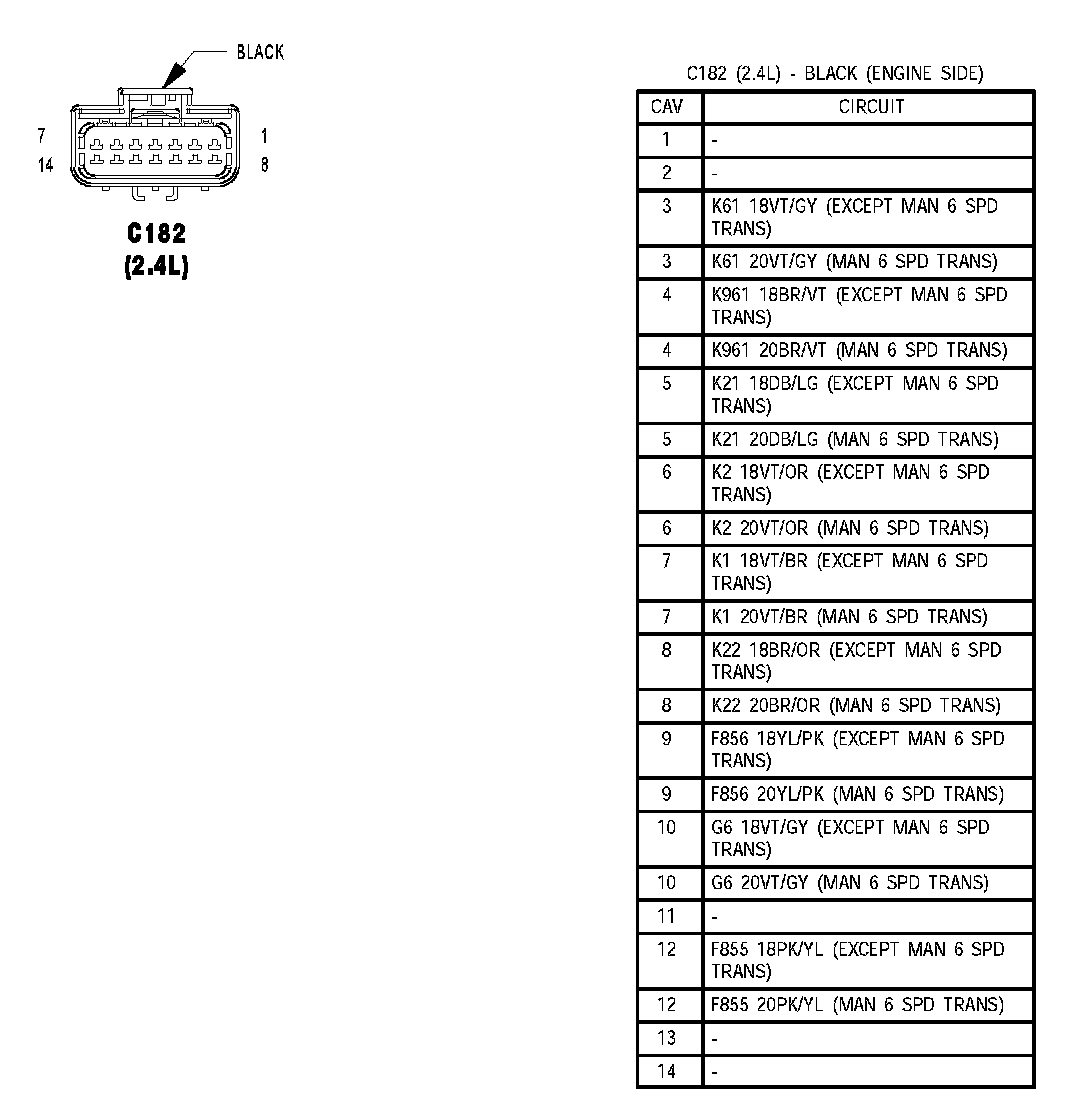

C182 (2.4L):

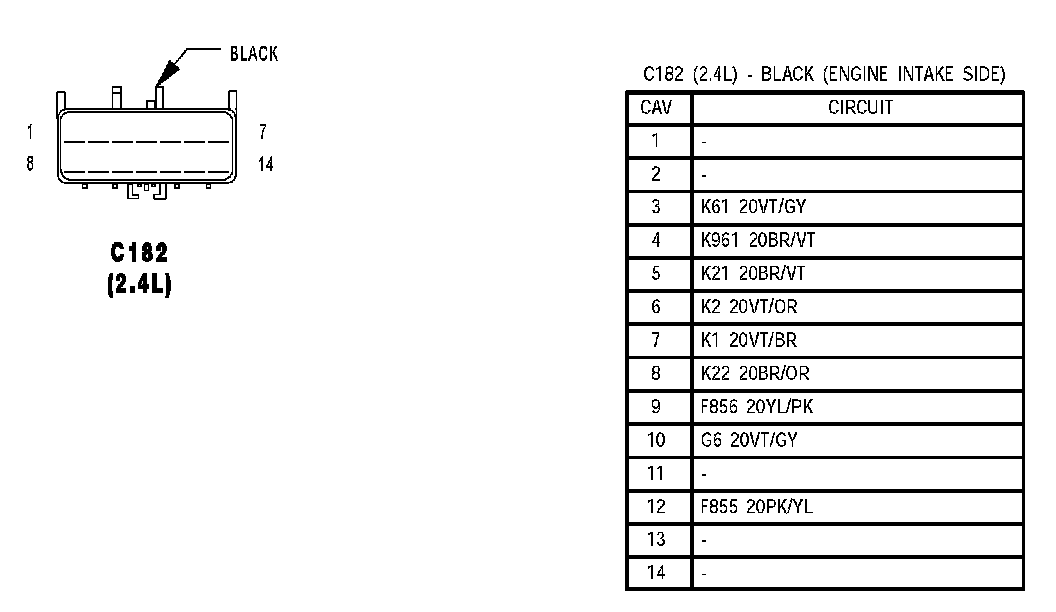

C182 (2.4L):
