Home
>>
Jeep Truck
>>
2006
>>
TJ (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C102 - C326
>>
C181
C181

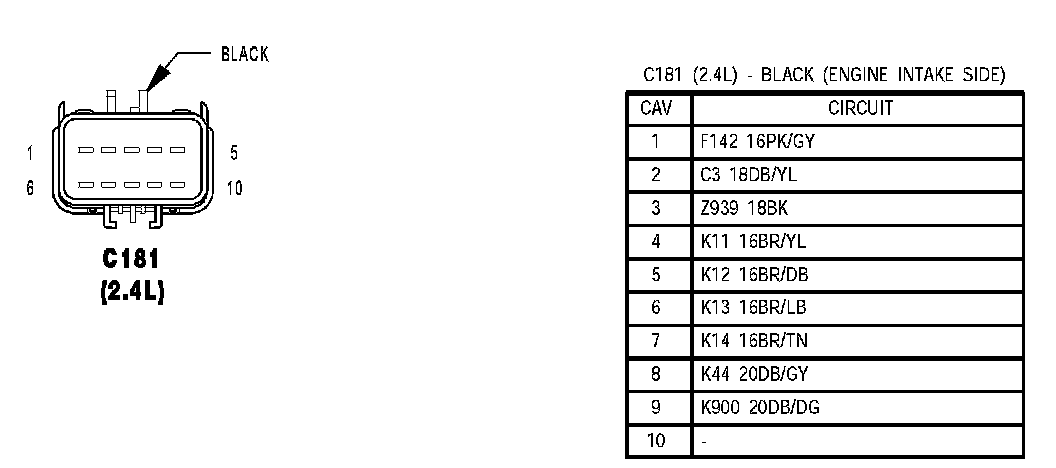

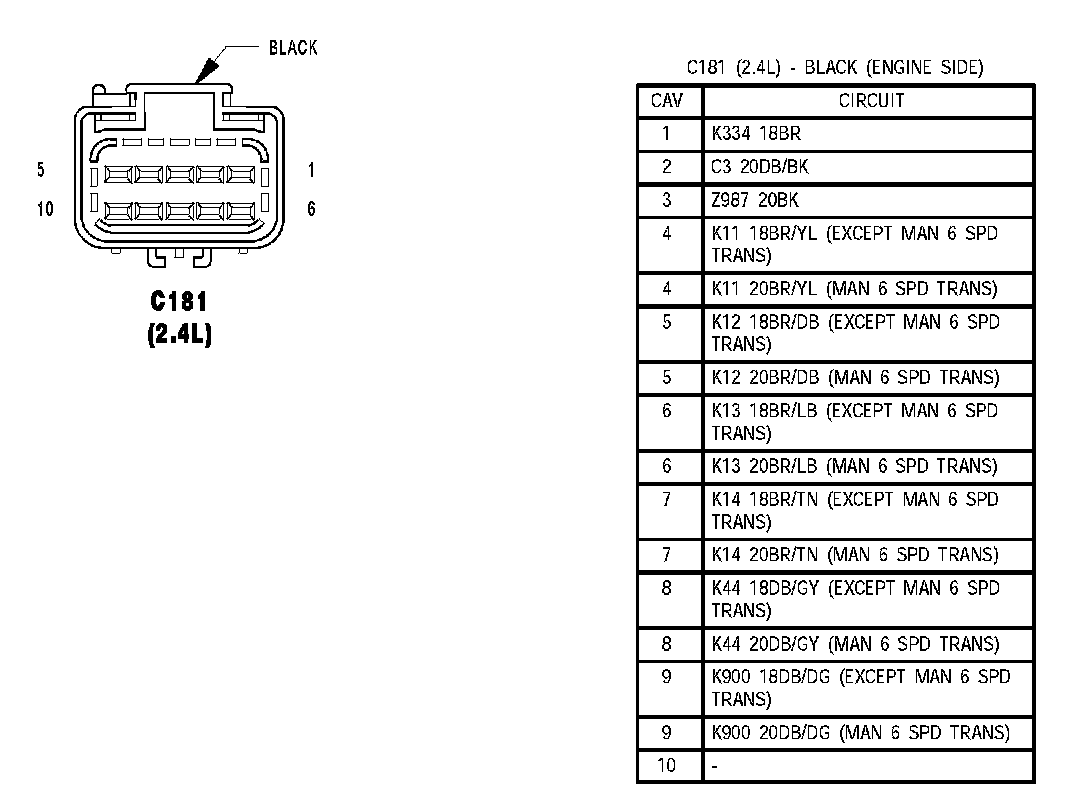

C181 (2.4L):
C182 (2.4L):
