Jeep Truck
>>
2006
>>
TJ (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C102 - C326
>>
C109
C109

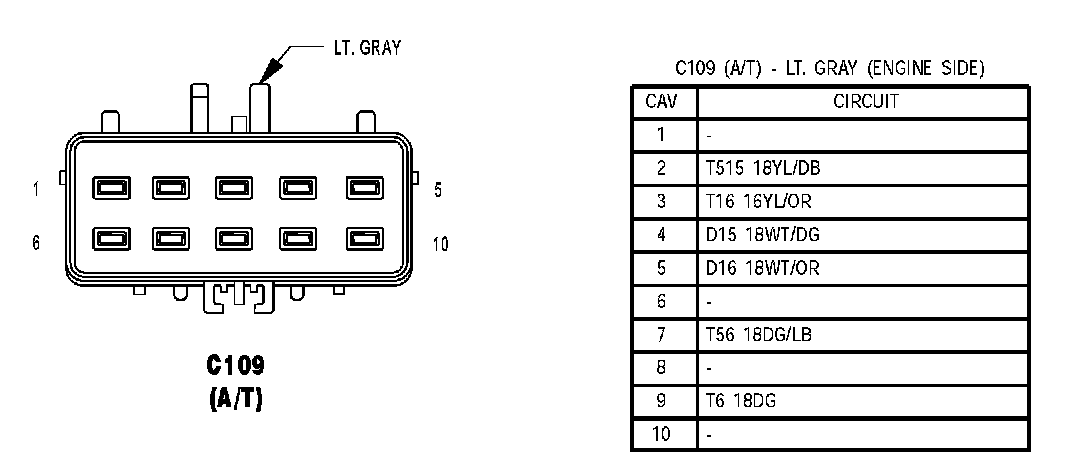

C109 (A/T):

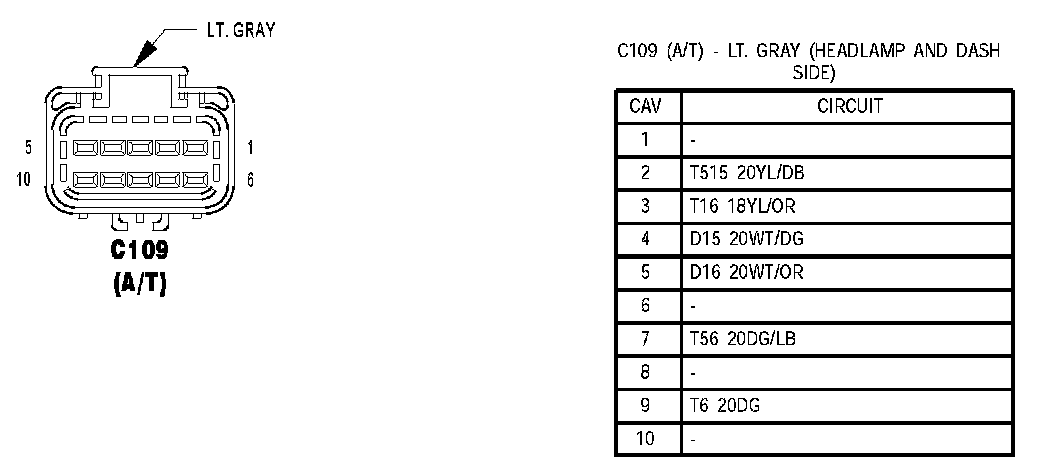

C109 (A/T):
