Air Pump, Differential Lock
Air Pump, Differential Lock

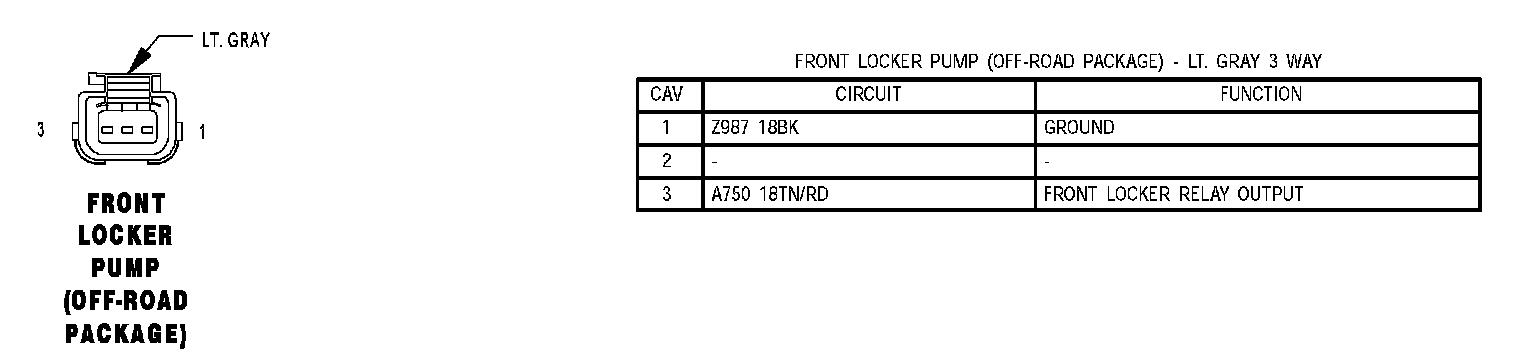

Front Locker Pump (Off-Road Package):

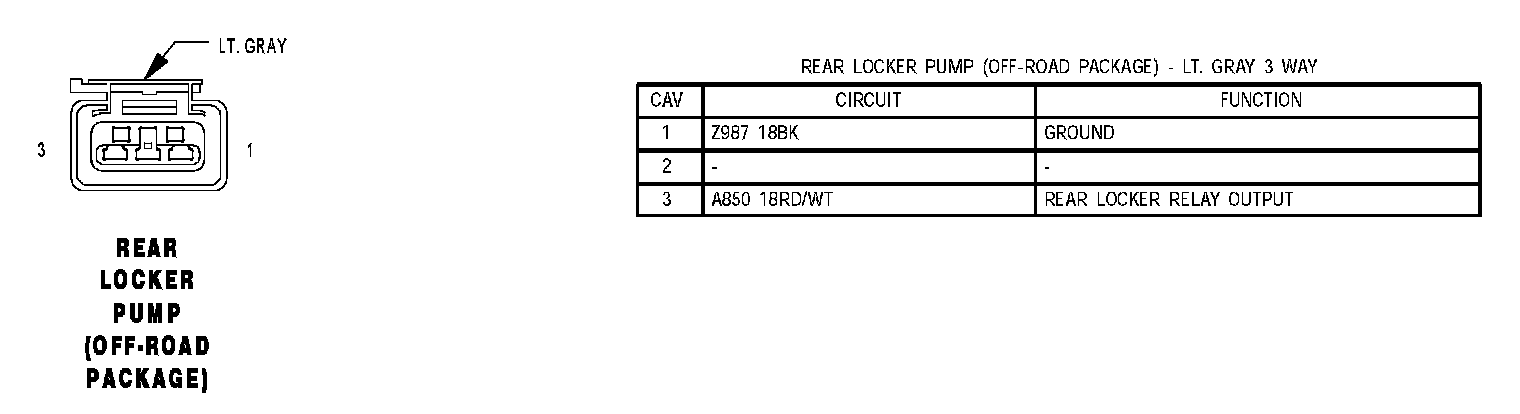

Rear Locker Pump (Off-Road Package):
