Brake Lamp Switch

Symptom:
BRAKE LAMP SWITCH

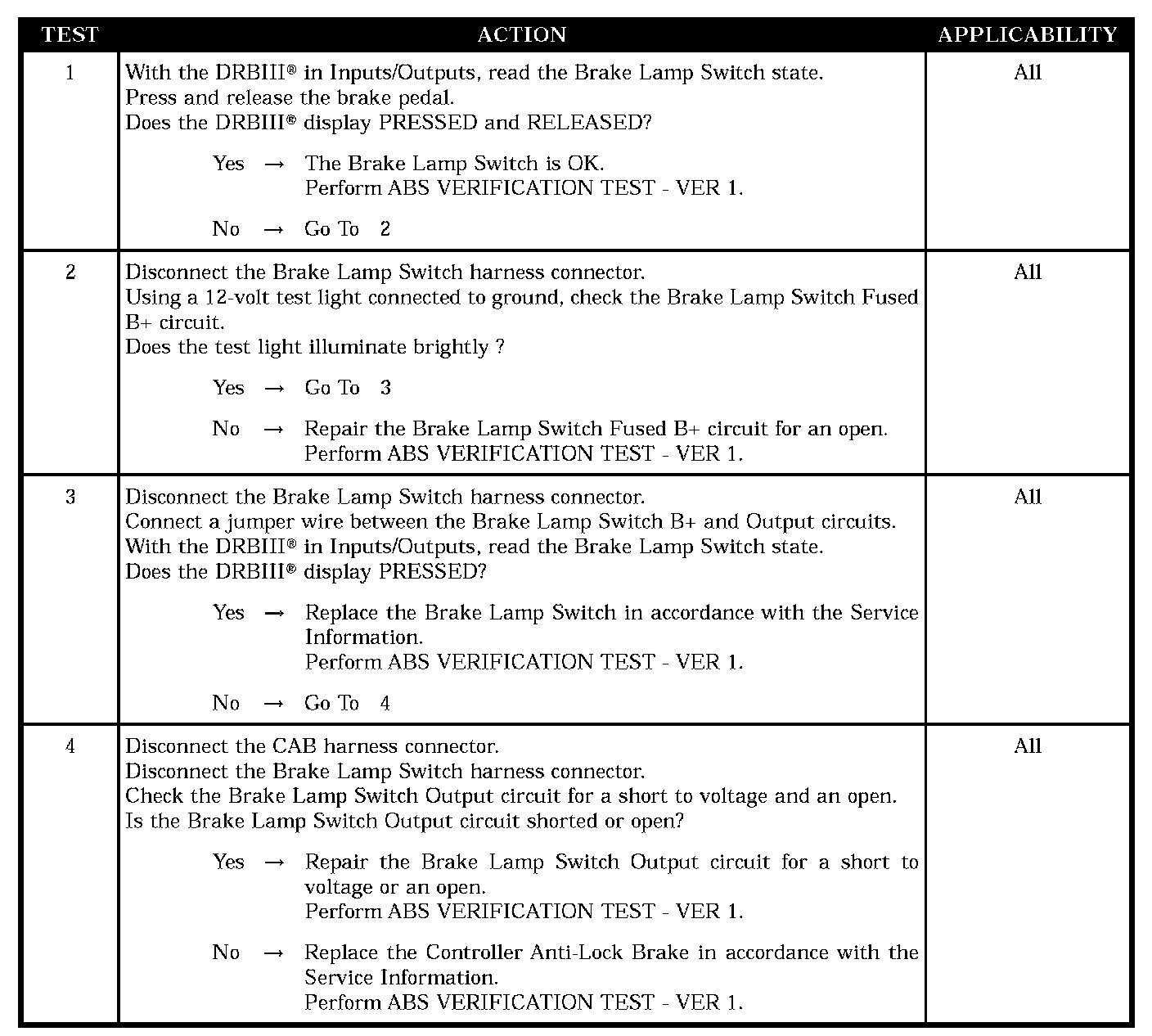

Test 1-4:





POSSIBLE CAUSES
- CHECK BRAKE LAMP SWITCH OUTPUT
- BRAKE LAMP SWITCH B+ OPEN
- BRAKE LAMP SWITCH OUTPUT CIRCUIT SHORT OR OPEN
- BRAKE LAMP SWITCH OPEN
- CAB-INTERNAL OPEN
