ABS Warning Indicator Inoperative

Symptom:
ABS WARNING INDICATOR INOPERATIVE

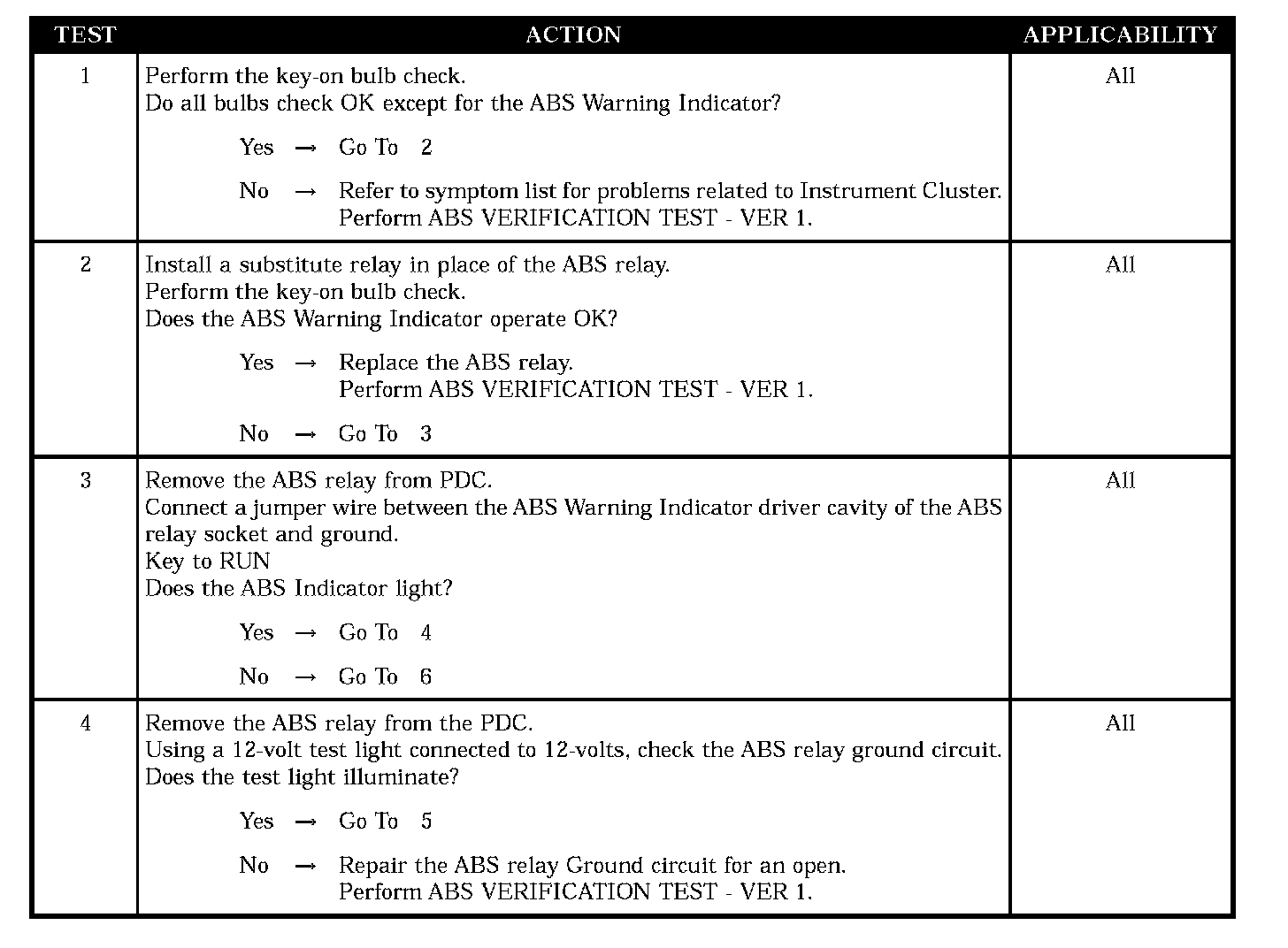

Test 1-4:

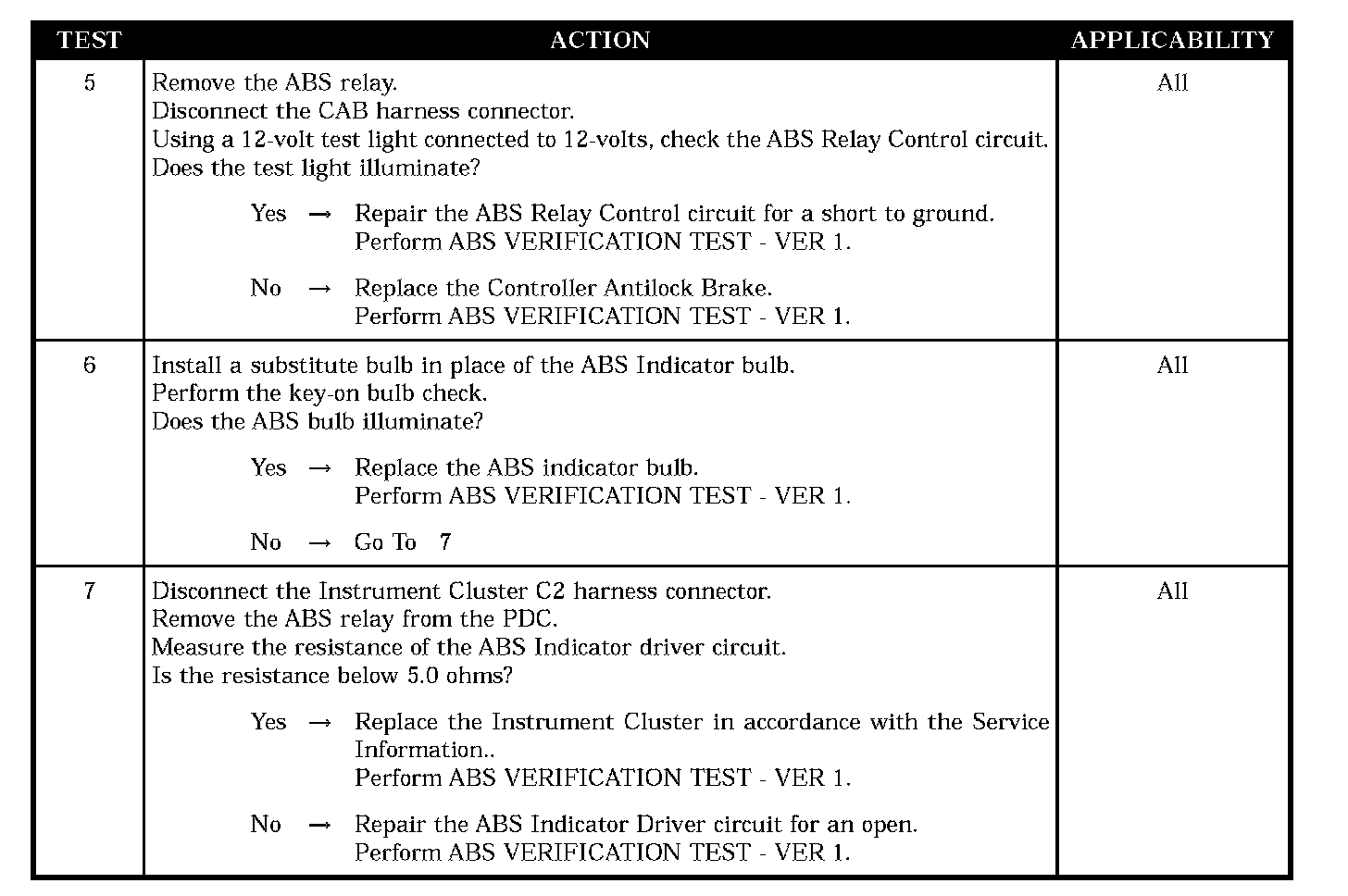

Test 5-7:

POSSIBLE CAUSES
- INSTRUMENT CLUSTER CONCERN
- ABS RELAY STUCK
- ABS RELAY GROUND CIRCUIT OPEN
- ABS RELAY CONTROL CIRCUIT SHORT TO GROUND
- CAB INTERNAL SHORT TO GROUND
- ABS INDICATOR BULB OPEN
- ABS INDICATOR DRIVER OPEN
- INSTRUMENT CLUSTER INTERNAL OPEN
