Rear Fender Liner: Service and Repair

WHEELHOUSE SPLASH SHIELD

REMOVAL

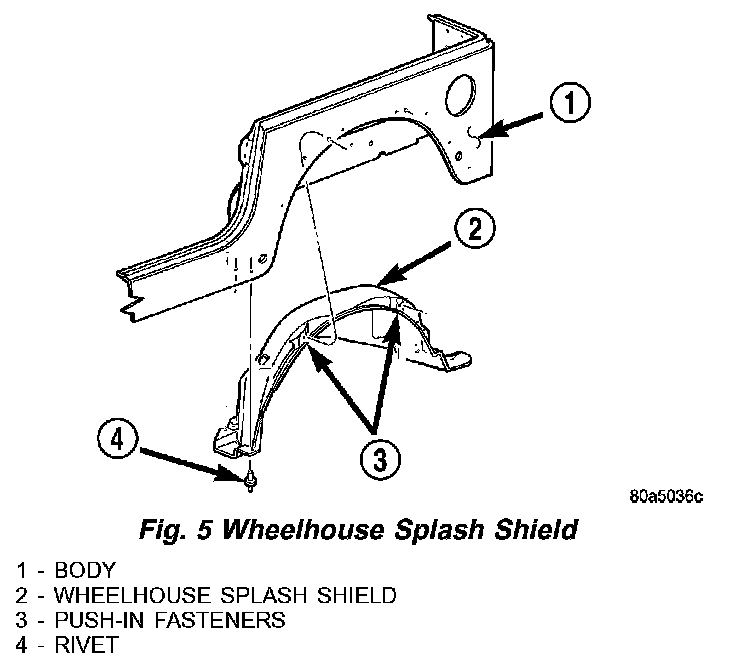

Fig. 5:

1. Remove the plastic push pins that attach the splash shield to the wheelhouse (Fig. 5).
2. Remove the push-in fasteners attaching the splash shield to the wheelhouse. (The push-in fasteners are molded into the splash shield.)
3. Remove the splash shield from the wheelhouse.

INSTALLATION

1. Position the splash shield in the wheelhouse.
2. Press the splash shield push-in fasteners into place.
2. Attach the splash shield to the wheelhouse with push pins.
