Accessories and Optional Equipment: Testing and Inspection

AUDIO

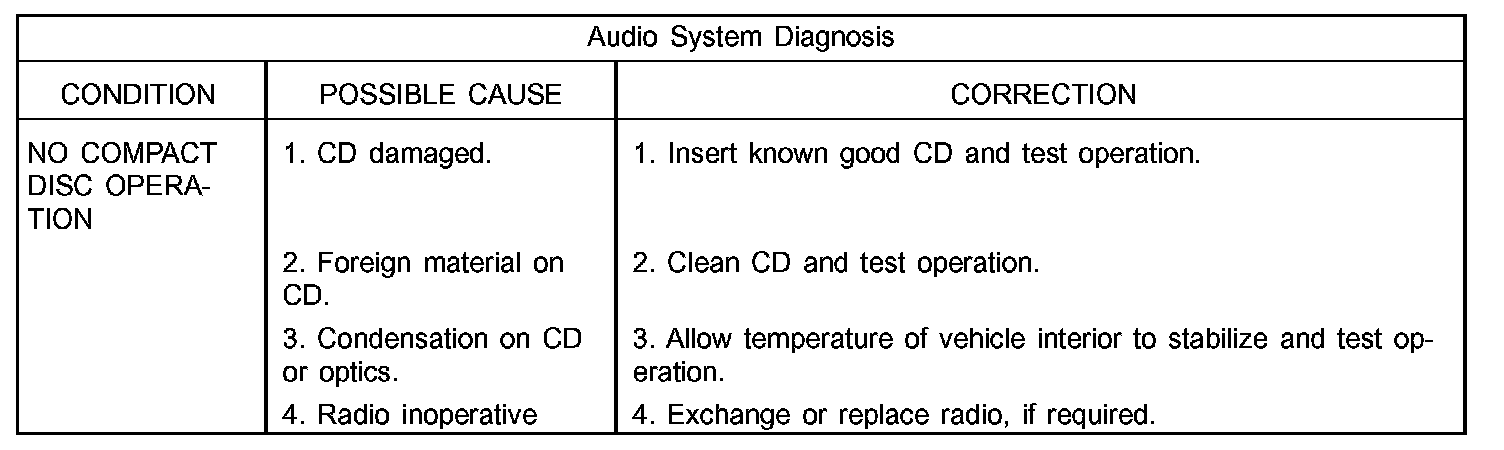

Audio System Diagnosis Part 1:

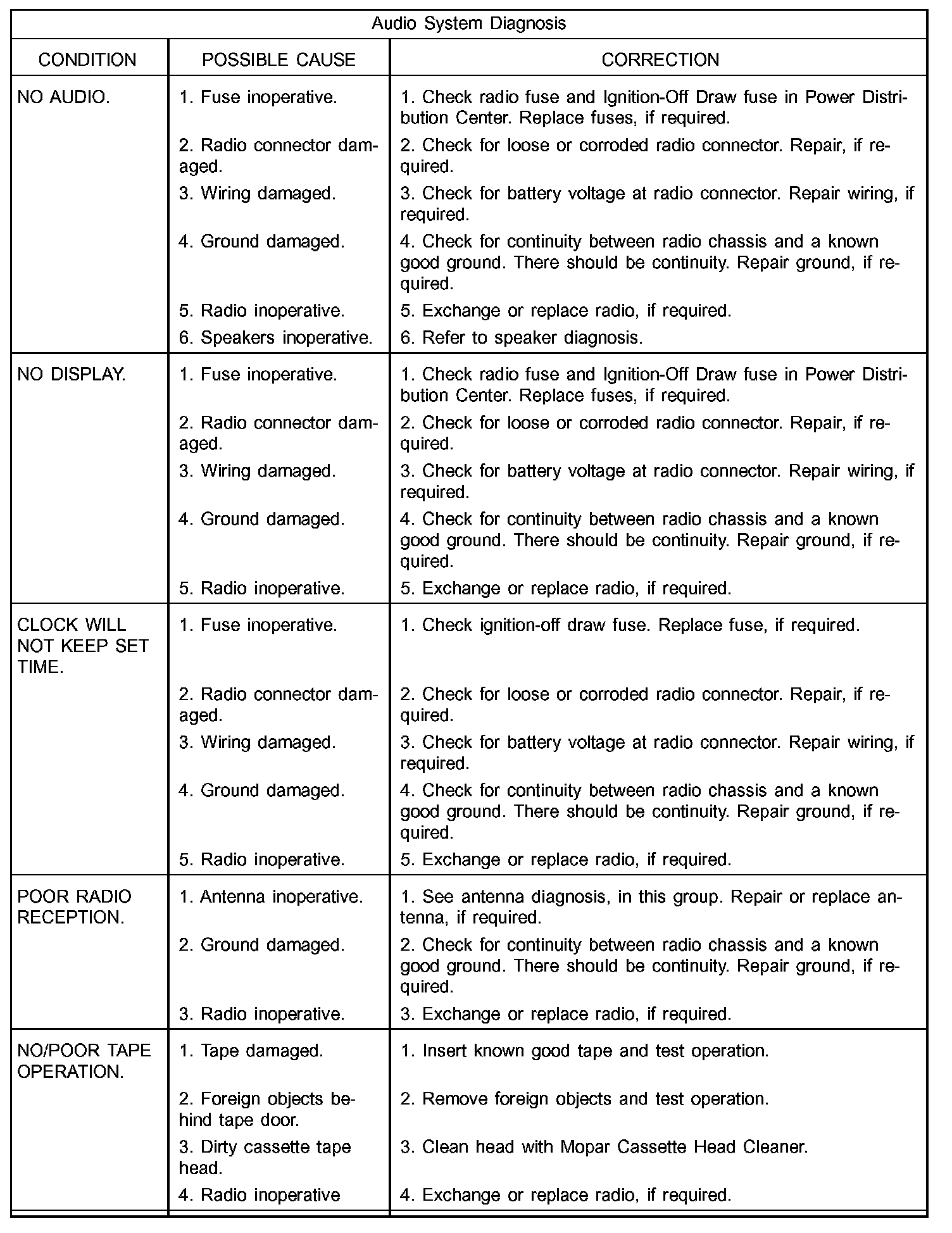

Audio System Diagnosis Part 2:

Any diagnosis of the Audio system should begin with the use of the DRB III(R) diagnostic tool. For information on the use of the DRB III(R).

For complete circuit diagrams, refer to the appropriate wiring information.

WARNING: ON VEHICLES EQUIPPED WITH AIR BAGS, REFER TO ELECTRICAL/RESTRAINTS) BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
