U0155

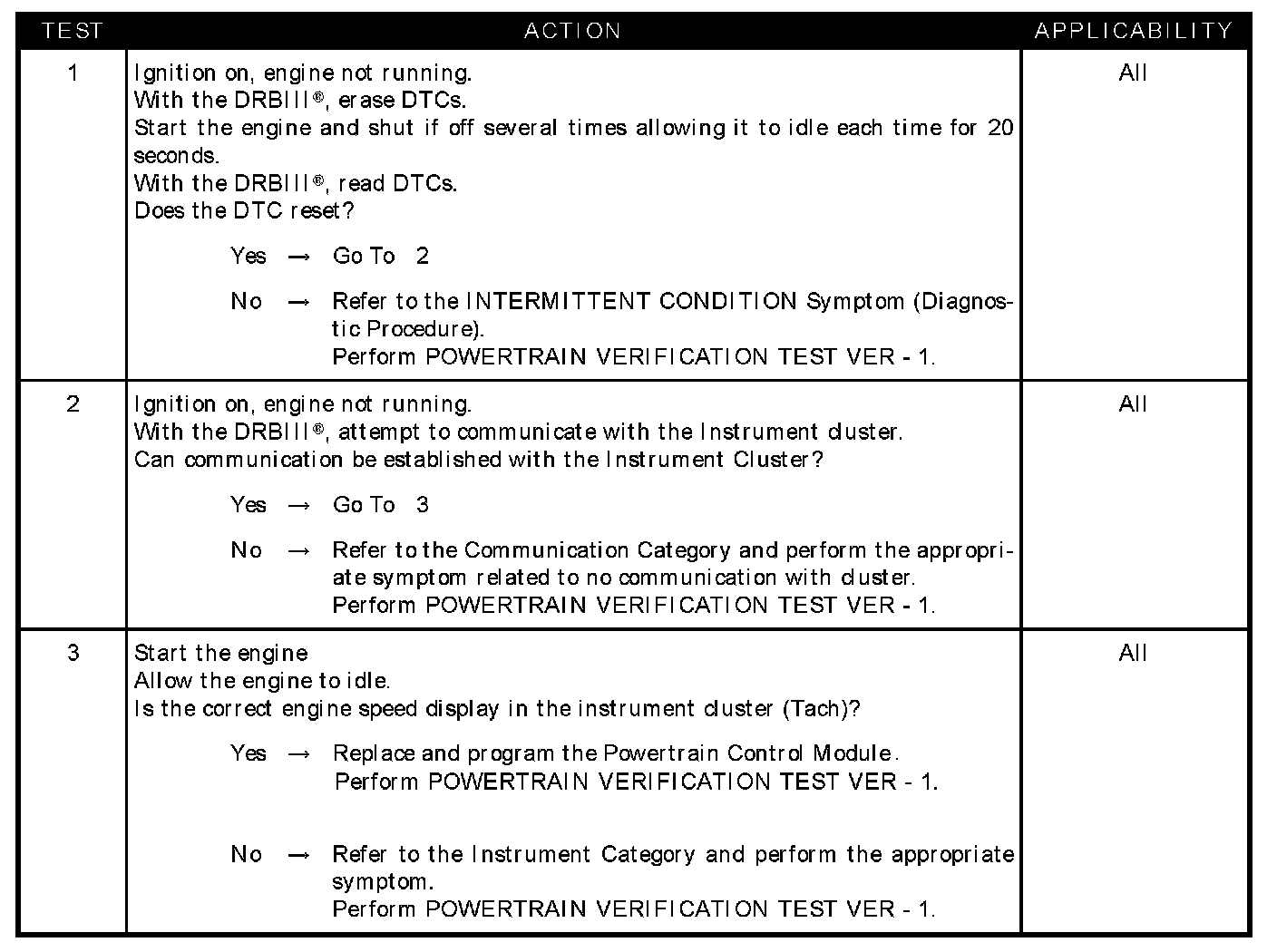

Test 1 - Test 3:

SYMPTOM
U0155-NO CLUSTER BUS MESSAGE

WHEN MONITORED
Ignition key on and engine running.

SET CONDITION
No messages received from the MIC (Instrument Cluster) for 20 seconds.

POSSIBLE CAUSES
- DTC reset
- Communicate with cluster
- Instrument cluster operation
- PCM
