P0582

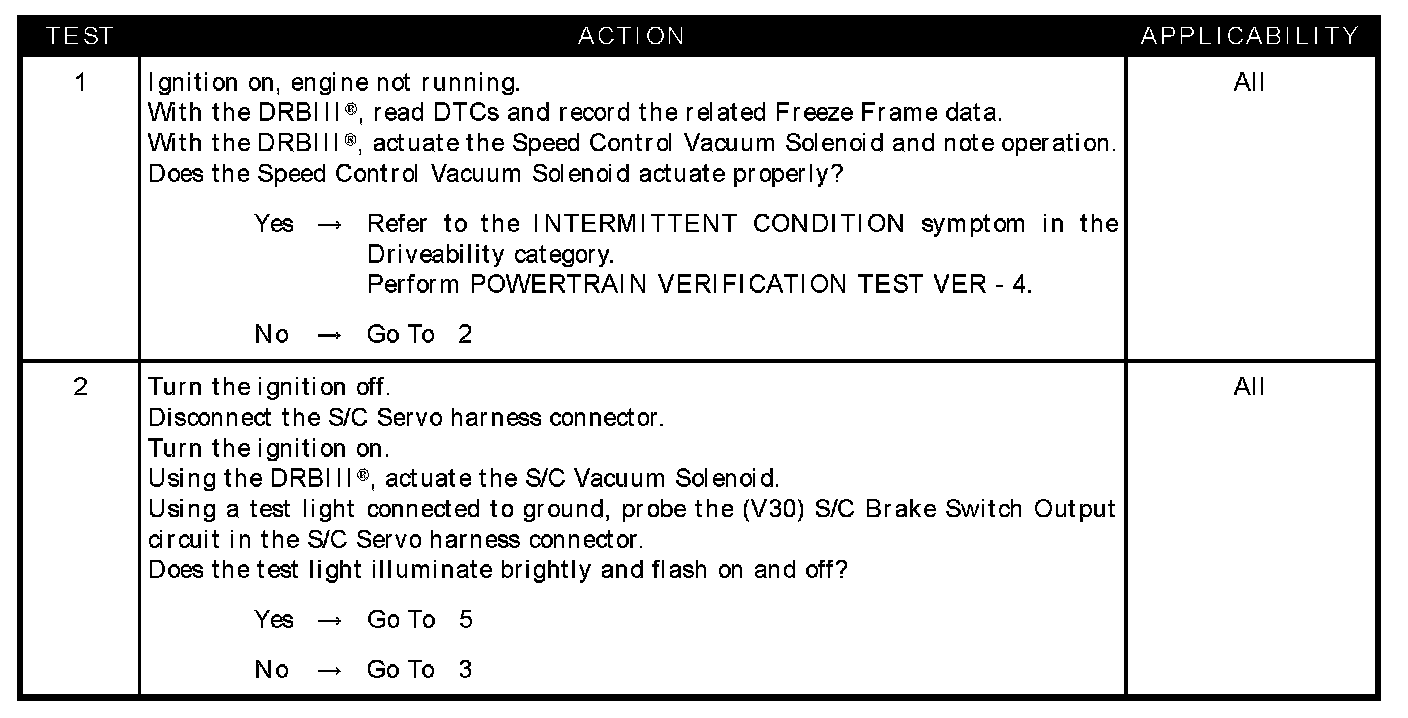

Test 1 - Test 2:

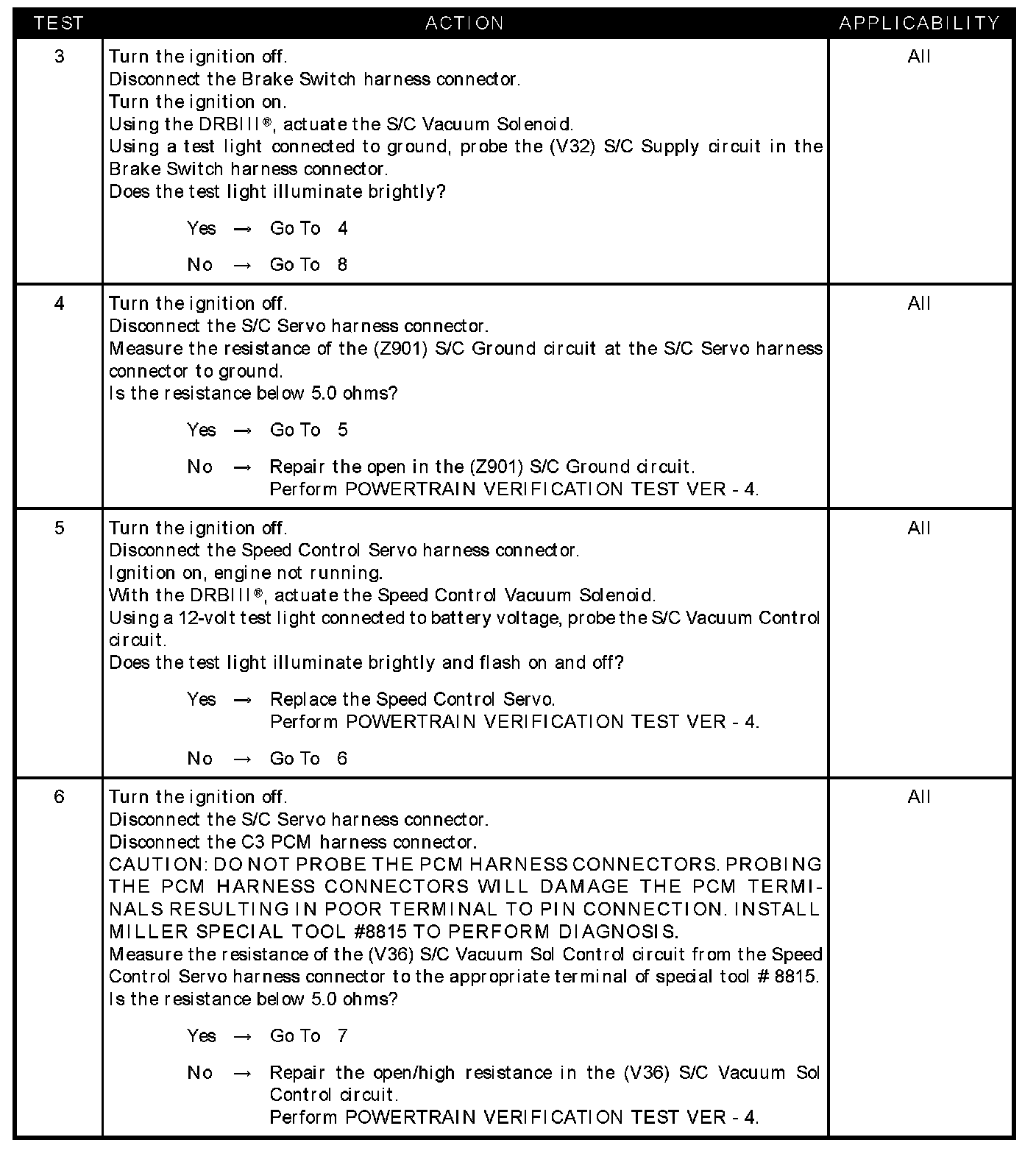

Test 3 - Test 6:

Test 7 - Test 10:

SYMPTOM
P0582-SPEED CONTROL VACUUM SOLENOID CIRCUIT

WHEN MONITORED
Engine running, the speed control switched on and learned, and the brake pedal is not pressed. No other fault has occurred this trip.

SET CONDITION
The PCM recognizes an open or short to ground in the speed control vacuum solenoid control circuit. Cruise will be disabled for the remainder of that key-on cycle. One Trip fault. Three good trips to clear the MIL.

POSSIBLE CAUSES
- Speed control solenoid operation
- (V32) S/C supply circuit
- Speed control vacuum solenoid
- (V32) S/C supply short to ground
- (V36) S/C vacuum SOL control circuit shorted to ground
- (V32) S/C supply circuit open
- (V36) S/C vacuum SOL control circuit open
- (Z901) S/C ground circuit open
- PCM
