P0562

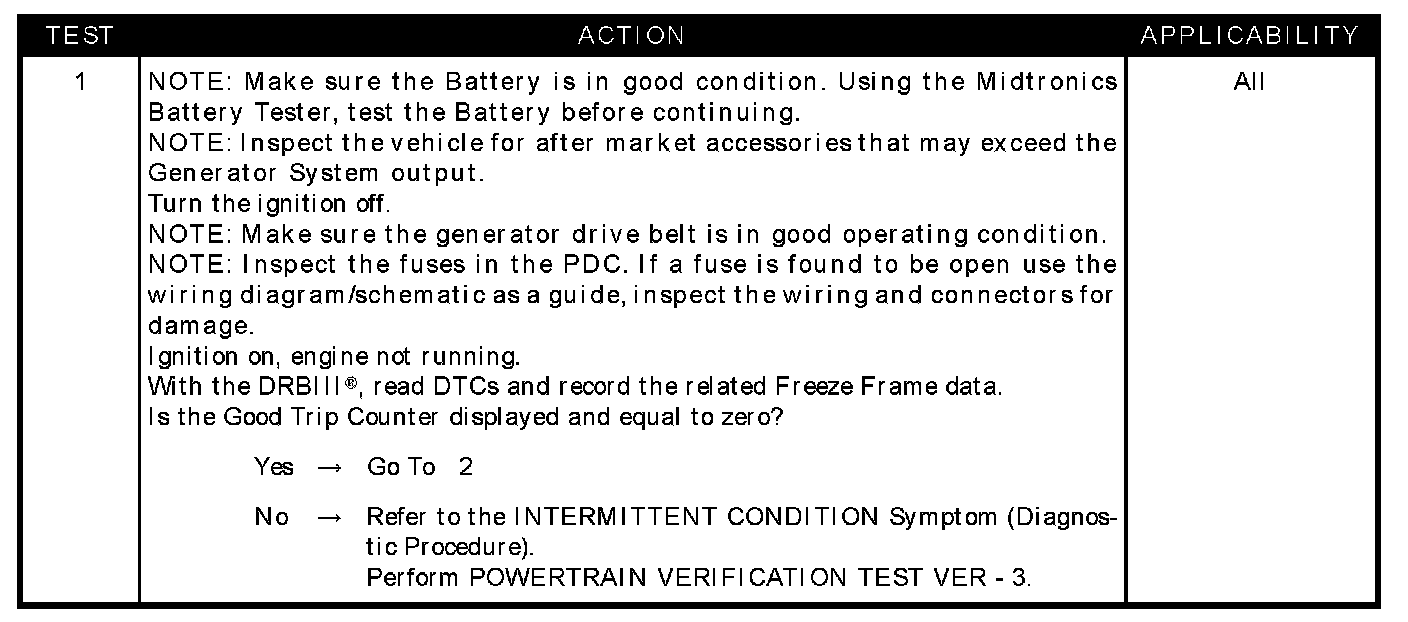

Test 1:

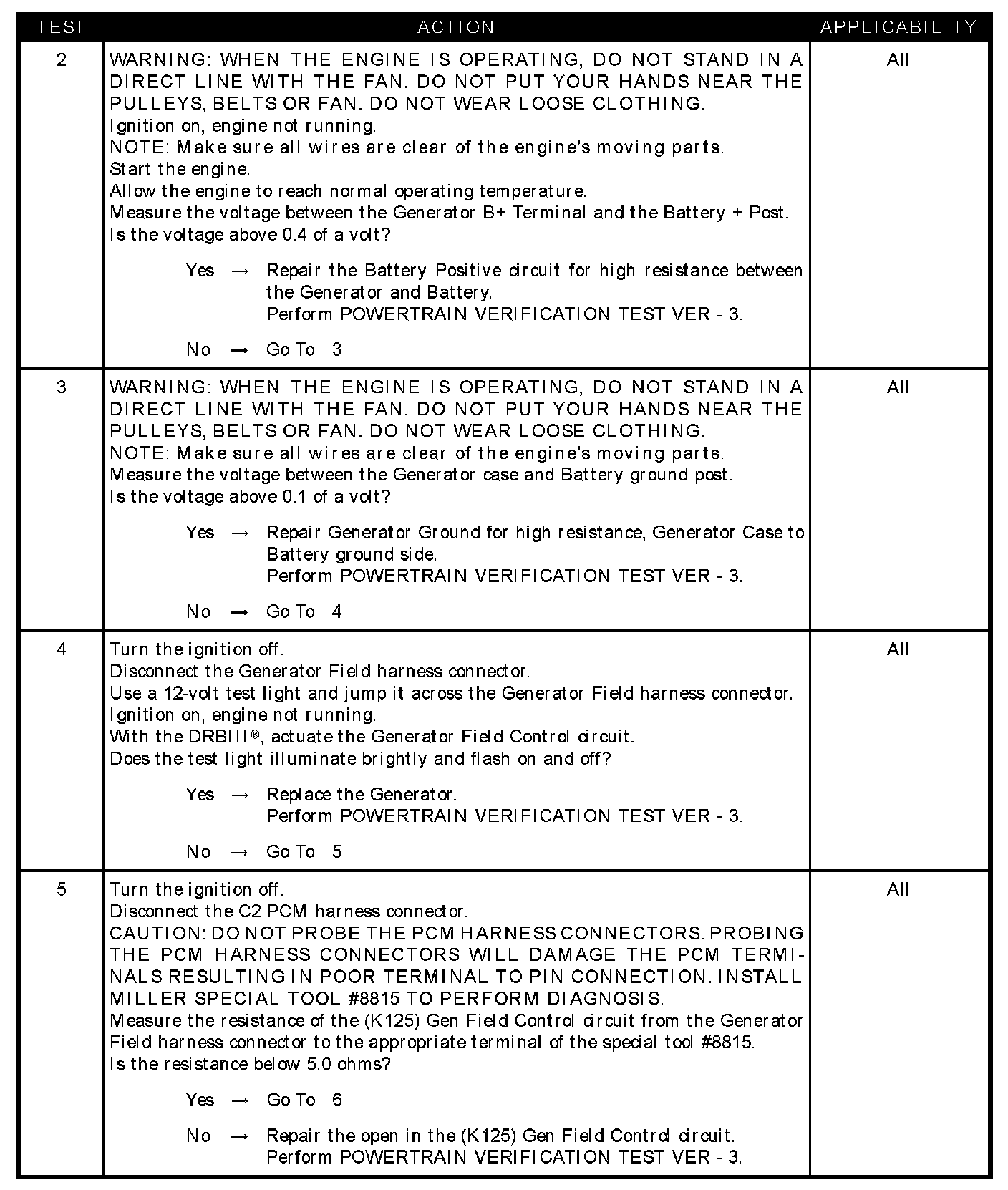

Test 2 - Test 5:

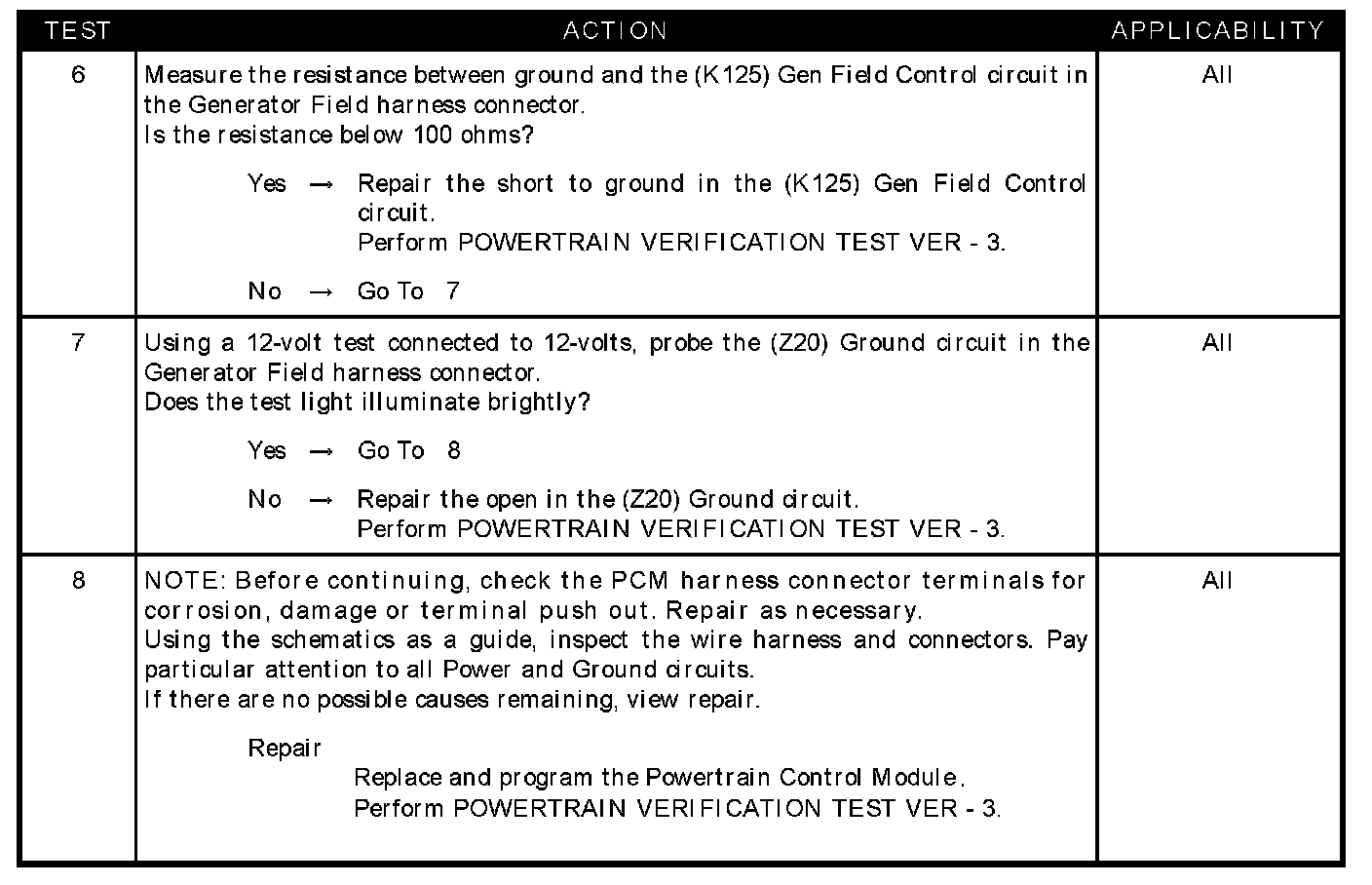

Test 6 - Test 8:

SYMPTOM
P0562-BATTERY VOLTAGE LOW

WHEN MONITORED
The engine running. The engine speed greater than 380 RPM.

SET CONDITION
Battery voltage is 1 volt less than desired system voltage.

POSSIBLE CAUSES
- Good trip equal to zero
- Battery positive circuit high resistance
- Generator ground high resistance
- Generator operation
- (K125) GEN field control circuit open
- (K125) GEN field control circuit shorted to ground
- (Z20) Ground circuit open
- PCM
